The world's first affordable microLED display for the home.

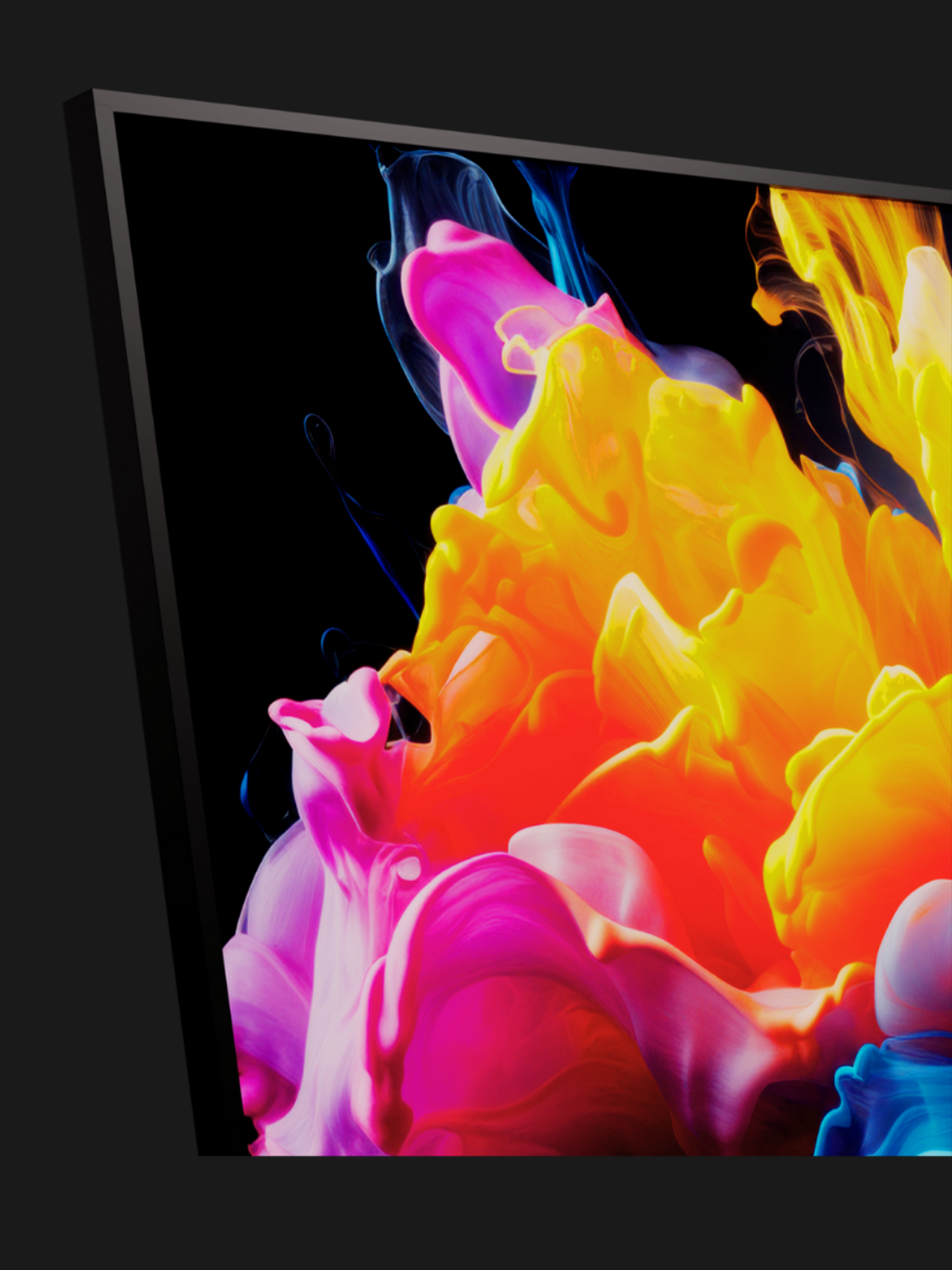

115% NTSC High Color Gamut
Experience True-to-Life Visuals. AWALL's advanced CoB calibration technology leverages a precise driving algorithm to dynamically adjust neighboring pixels, ensuring optimal color accuracy and image quality. This technology compensates for pixel variations and reduces speckle interference, resulting in ultra-clear image renderings with vibrant, true-to-life colors. With an impressive 115% NTSC high color gamut and exceptional color retention, AWALL delivers enhanced image detail and superior color reproduction, bringing every visual to life.
115% NTSC High Color Gamut
Experience True-to-Life Visuals. AWALL's advanced CoB calibration technology leverages a precise driving algorithm to dynamically adjust neighboring pixels, ensuring optimal color accuracy and image quality. This technology compensates for pixel variations and reduces speckle interference, resulting in ultra-clear image renderings with vibrant, true-to-life colors. With an impressive 115% NTSC high color gamut and exceptional color retention, AWALL delivers enhanced image detail and superior color reproduction, bringing every visual to life.
MicroLED High Grey Technology
Unmatched Precision, Unrivaled Performance.
AWALL's microLED High Grey technology, combined with 22-bit processing, maintains precise greyscale accuracy at just 5% brightness, delivering true-to-life colors and an impressive native contrast ratio of 12,000:1 and dynamic contrast ratio of infinite blacks, revealing intricate details even in dark scenes.
1000:1 Normal display average contrast
12,000:1 Native Contrast ratio (Dynamic Contrast: Infinite)
Reviews

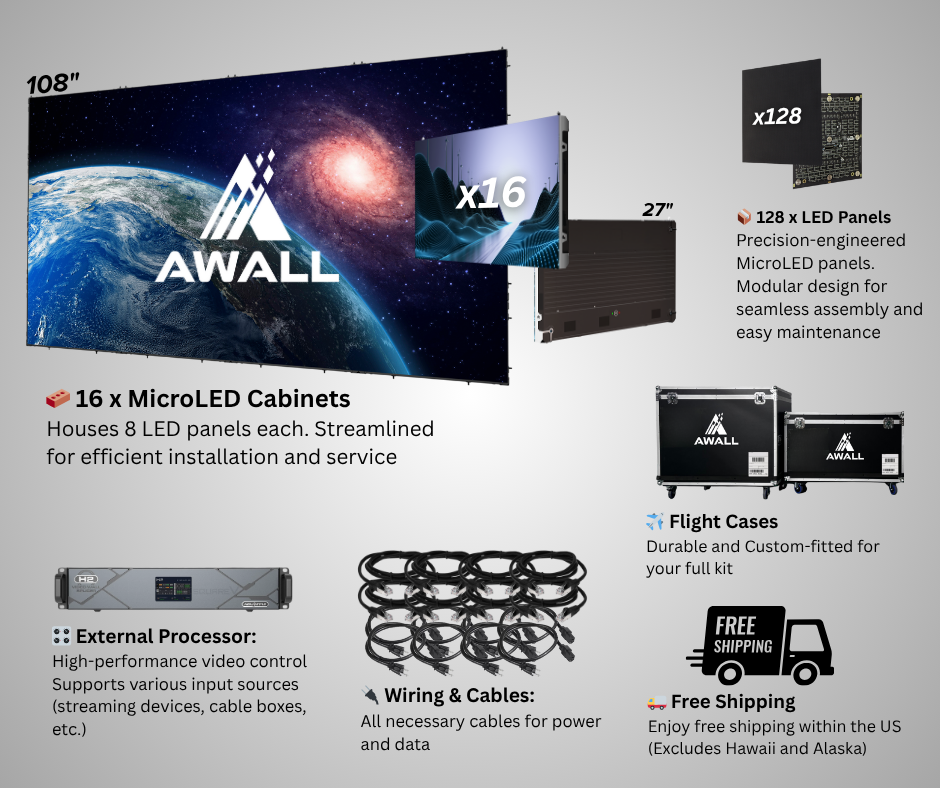

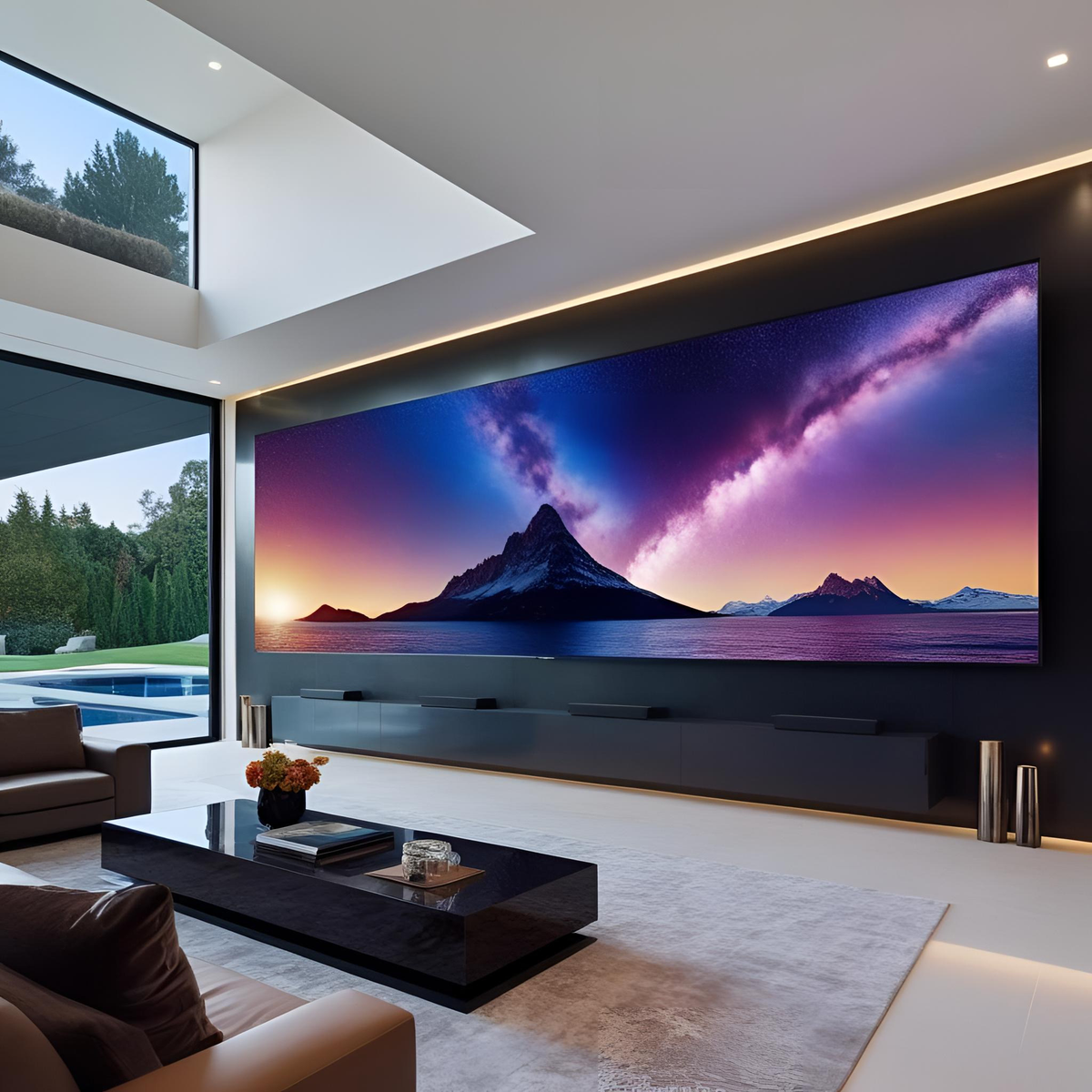

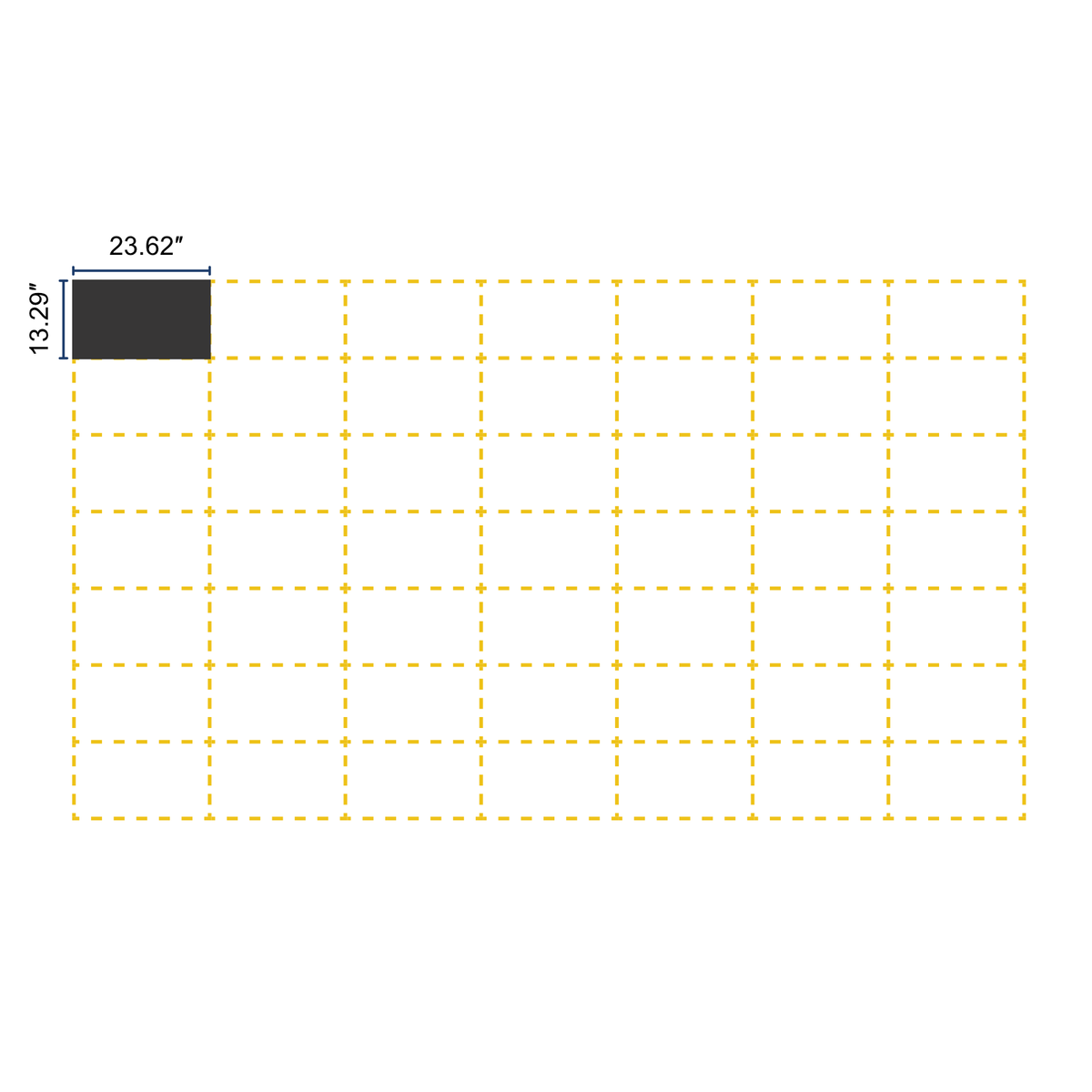

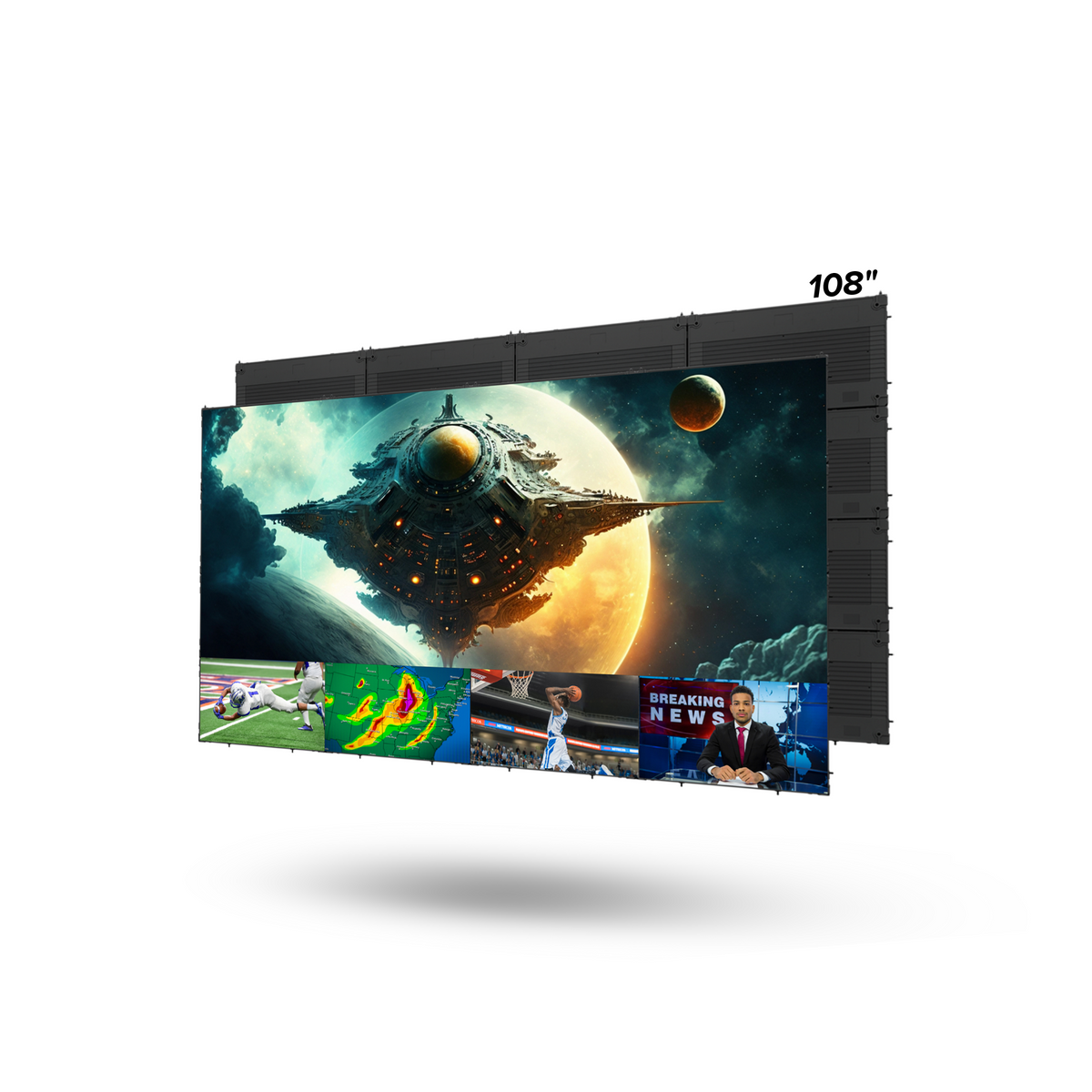

Any Size For Any Room

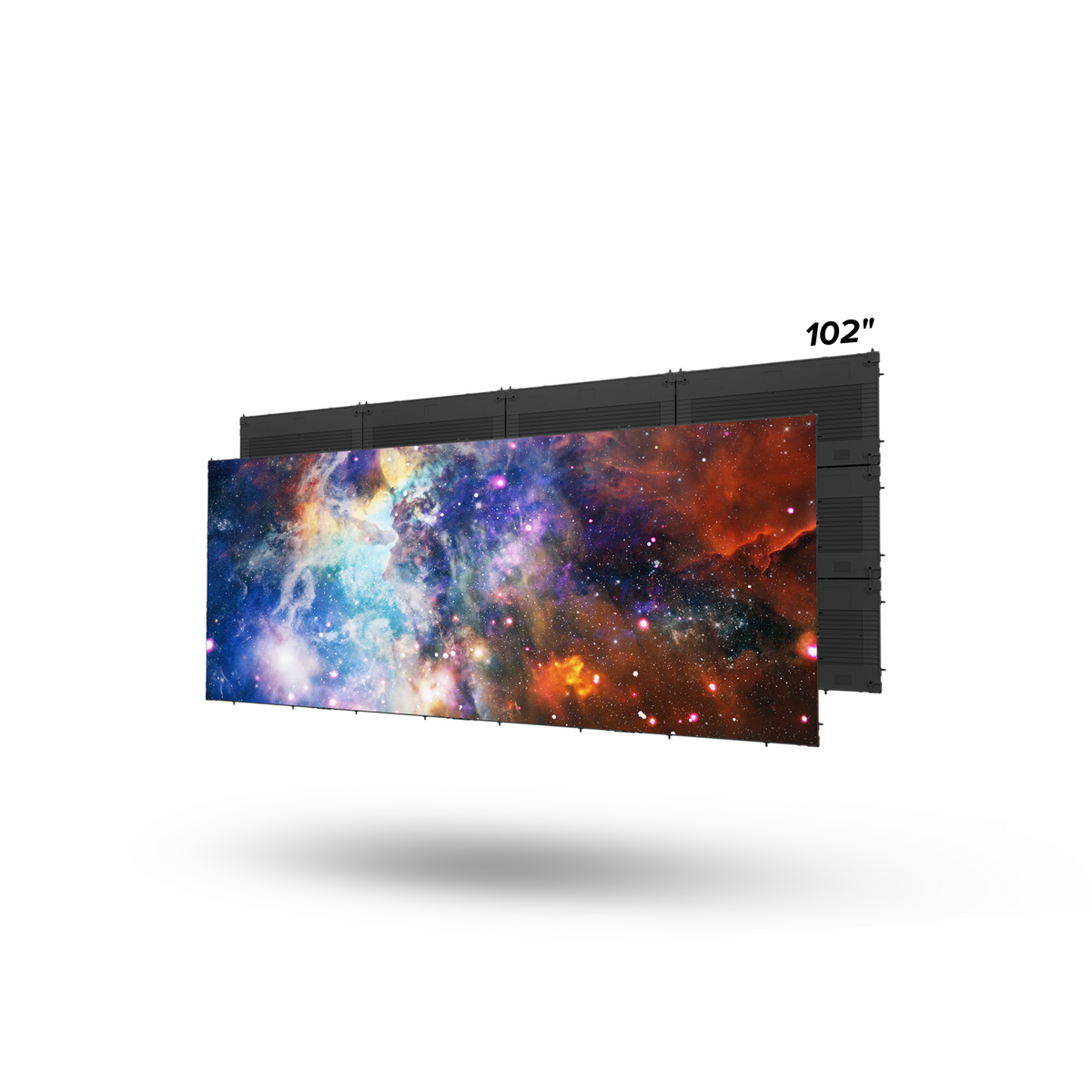

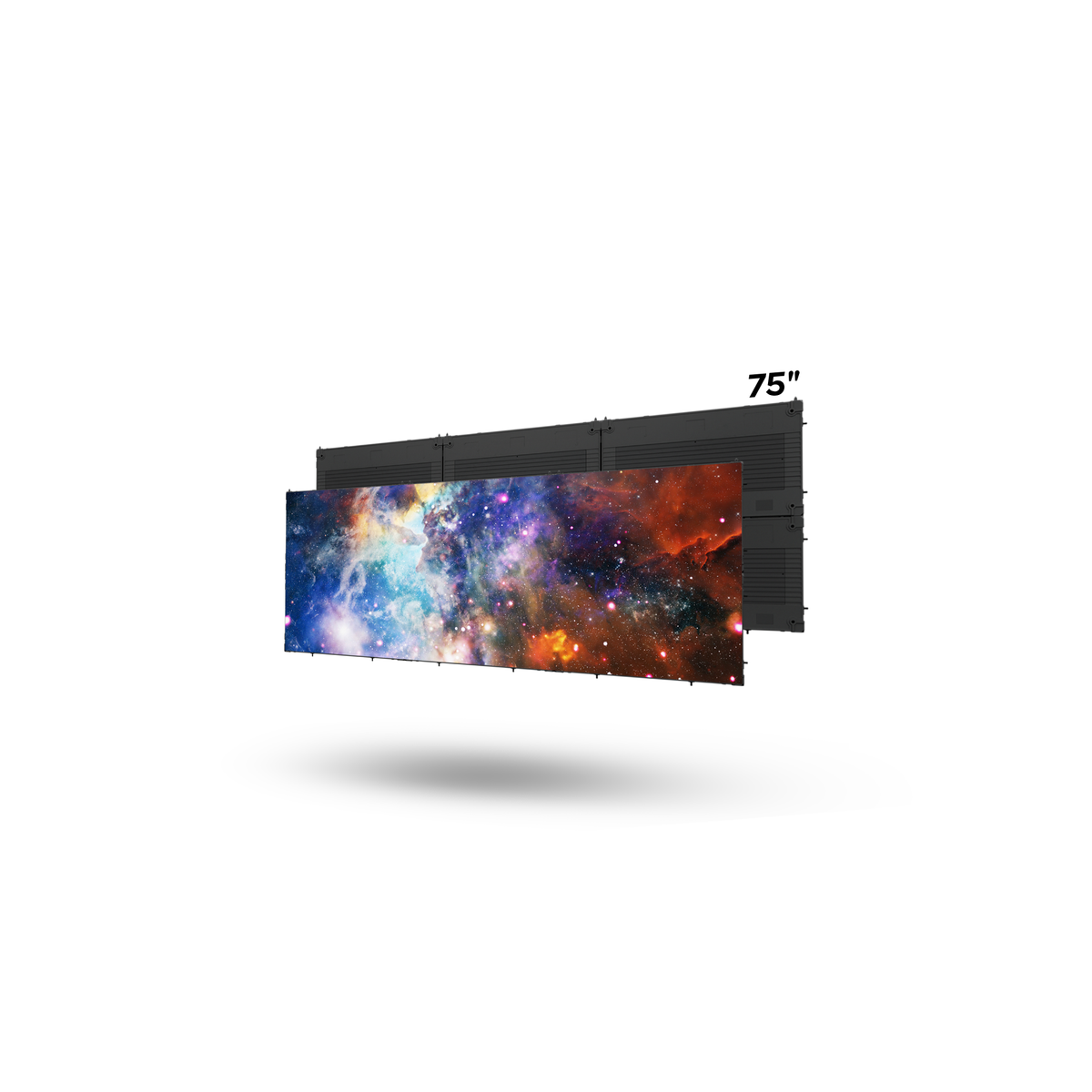

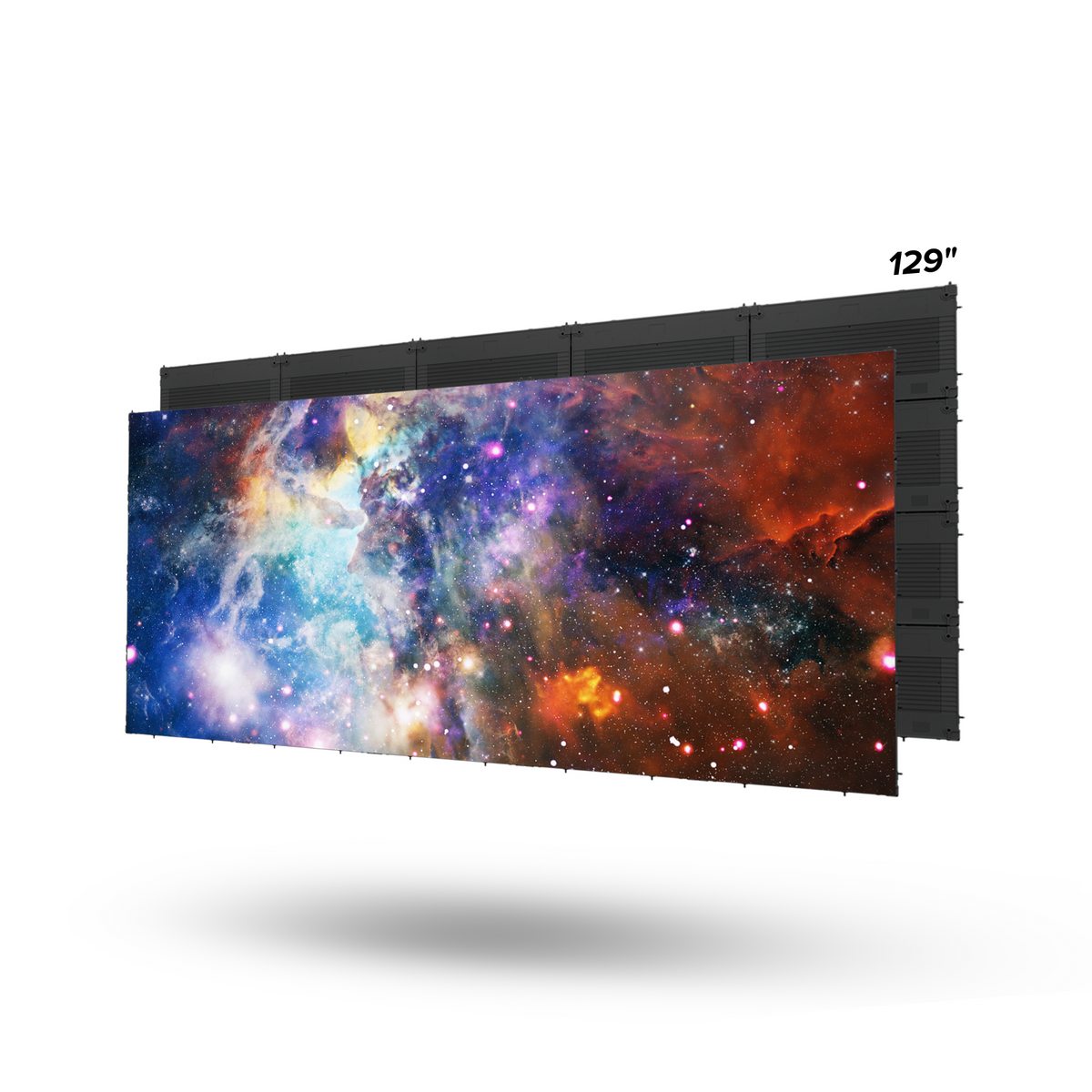

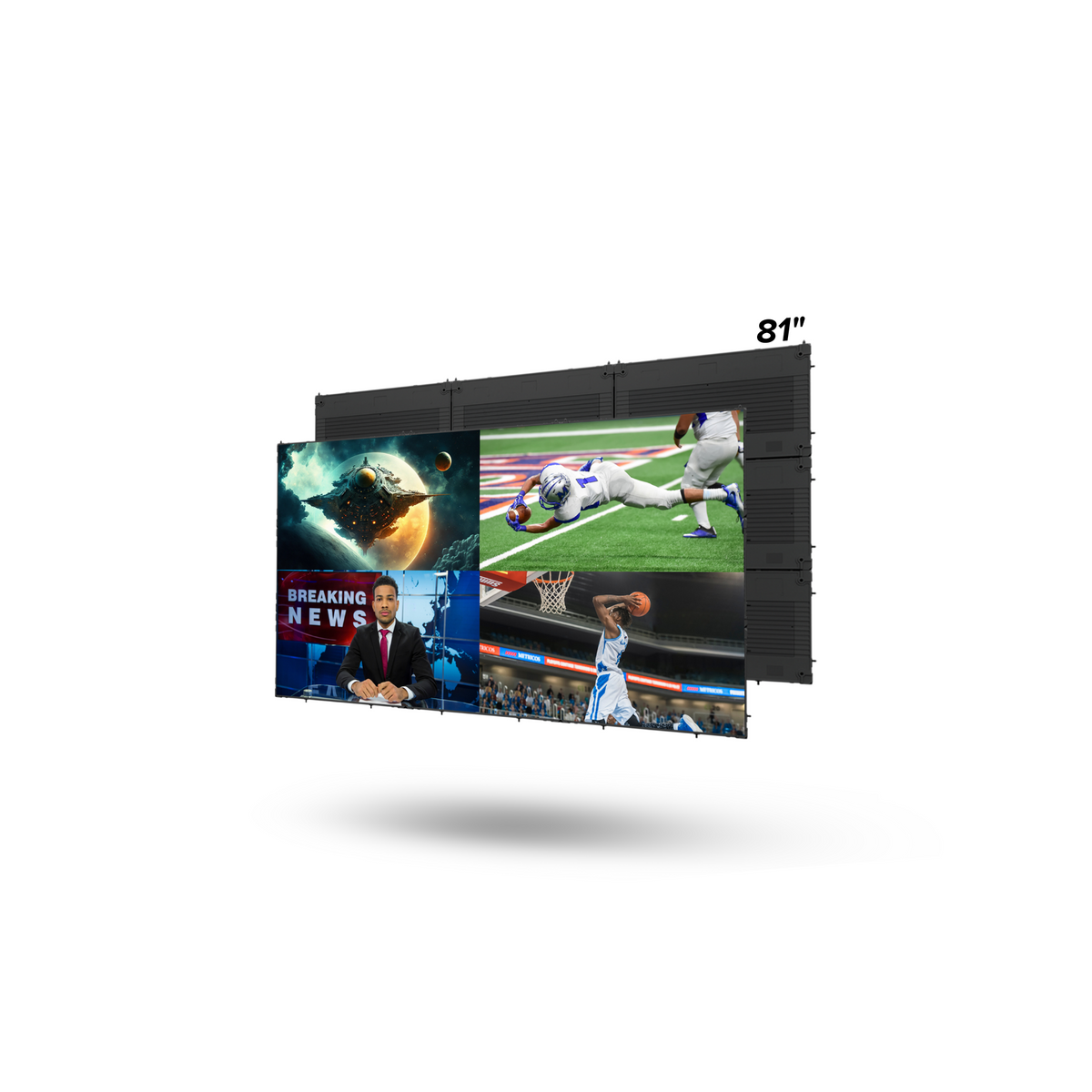

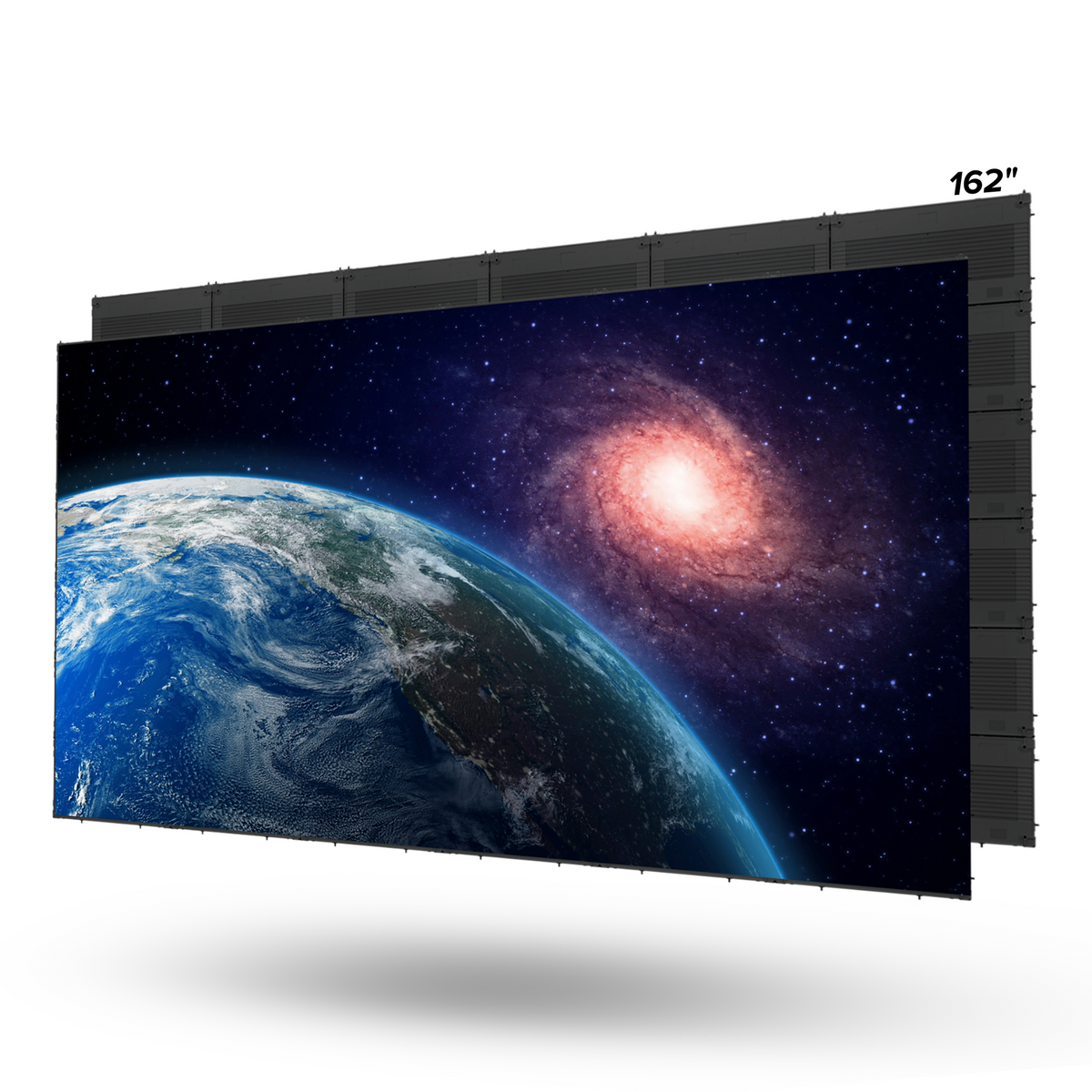

AWALL comes in convenient preconfigured sizes: 75", 81", 102", 108”, 129", 135"and 162" with a 16:9 or 21:9 display ratio and an ultra-high 98% screen-to-body ratio. For larger or specialized installations, AWALL also offers customizable sizes, aspect ratios, and shapes, perfect for commercial displays, command centers, visualized data centers, and more, scaling up to 300 inches and beyond.
45% lighter
55% thinner
AWOL Vision's Flip-Chip CoB LED display technology outperforms traditional upright-chip technology in terms of volume, reliability, lighting efficiency, and lifespan.
By utilizing 50% fewer solder joints and a solder joint area that's 7 times larger, AWALL achieves a significantly reduced volume compared to conventional fine-pitch displays.Specifically, the weight per meter square is reduced by more than 20%. And thanks to Our special pixel arrangement and ultra-thin pixel pitch cabinets, AWALL is 45% lighter and 55% thinner overall compared to other displays.
Built to Last, Designed for Convenience.
The innovative design features point contact and strategically placed support structures, enhancing physical flatness and simplifying installation. With this structure, complex wiring and debugging are eliminated, allowing two people to complete the setup in just two hours with precise seam alignment.
All AWALL sizes are designed for easy cleaning and scratch resistance, with an IP65 rating that ensures protection against water, dust, moisture, and impact. The screen surface can be effortlessly wiped with a soft cloth, offering both convenience and durability.
AWALL comes in convenient preconfigured sizes: 75", 81", 102", 108”, 129", 135"and 162" with a 16:9 or 21:9 display ratio and an ultra-high 98% screen-to-body ratio. For larger or specialized installations, AWALL also offers customizable sizes, aspect ratios, and shapes, perfect for commercial displays, command centers, visualized data centers, and more, scaling up to 300 inches and beyond.
45% lighter
55% thinner
AWOL Vision's Flip-Chip CoB LED display technology outperforms traditional upright-chip technology in terms of volume, reliability, lighting efficiency, and lifespan.
By utilizing 50% fewer solder joints and a solder joint area that's 7 times larger, AWALL achieves a significantly reduced volume compared to conventional fine-pitch displays.Specifically, the weight per meter square is reduced by more than 20%. And thanks to Our special pixel arrangement and ultra-thin pixel pitch cabinets, AWALL is 45% lighter and 55% thinner overall compared to other displays.
Built to Last, Designed for Convenience.
The innovative design features point contact and strategically placed support structures, enhancing physical flatness and simplifying installation. With this structure, complex wiring and debugging are eliminated, allowing two people to complete the setup in just two hours with precise seam alignment.
All AWALL sizes are designed for easy cleaning and scratch resistance, with an IP65 rating that ensures protection against water, dust, moisture, and impact. The screen surface can be effortlessly wiped with a soft cloth, offering both convenience and durability.
Compare
CoB MicroLED Video Wall vs. OLED TVs
AWALL CoB MicroLED Video Wall
OLED TV
Customizable
75", 81", 102", 108", 129", 135", 162", up to 300+ inches
Limited to sizes up to ~83 inches
Up to 1,200 nits
(ideal for brightly lit environments)
700-800 nits
(struggles in bright rooms)
115% NTSC high color gamut
~99% NTSC color gamut
Native: 12,000:1
Dynamic: Infinite
(deep blacks, precise details even in low brightness)
True black lavel
IP65-rated
water, dust, and scratch resistant
Fragile:
susceptible to burn-in and scratches
TÜV-certified with reduced harmful blue light (415-455nm range)
No specific blue light reduction features
As low as 0.9mm
for high-density, seamless visuals
Fixed pixel density,
lower resolution at large sizes
64% lower power consumption (65W/m²)
Higher power consumption at comparable sizes
Over 100,000 hours
(thanks to CoB flip-chip technology)
~30,000-50,000 hours
45% lighter and 55% thinner
than conventional LED walls
Heavy, especially for large sizes
Fully customizable sizes, aspect ratios, and shapes
Limited to standard rectangular formats
Easy setup
by two people in under two hours
Requires professional installation for large sizes
3840Hz
(eliminates drag, blur, and lag)
120Hz
(may cause blur in fast motion)
Pixelation-free even at close range
Potential pixelation at close range with large displays
Advanced cooling system
reduces surface temperature by 25%
Limited heat dissipation, may get warm
Reliability
Power Efficiency, Endless Durability.
AWALL reduces power consumption with its 3D inkjet printing technology, enhancing black consistency even when the display is off, and improving efficiency by 20% at the same brightness levels.Our Micro LED integrated structure further minimizes energy usage, with an average power consumption of only 65W/m², which is 64% lower than traditional Screens that consume 180W/m². This efficient de sign not only lowers energy costs but also extends the display's lifespan.With a Common Cathode Energy-saving IC that reduces system temperature and a low-power COB flip-chip LED, AWALL's display lifetime exceeds 100,000 hours, ensuring longevity and reliability.
100,000 hours
display lifetime
64%
lower power consumption
Experience flawless visuals with an ultra-high 3840Hz refresh rate that eliminates drag, blur, and lag, ensuring an incredibly smooth viewing experience. With support for 4K Ultra HD output, AWALL is ready to drive the future of 5G+4K Ultra HD display technology.
3840Hz
Refresh Rate
1.2 or 0.9
Pixel Pitch

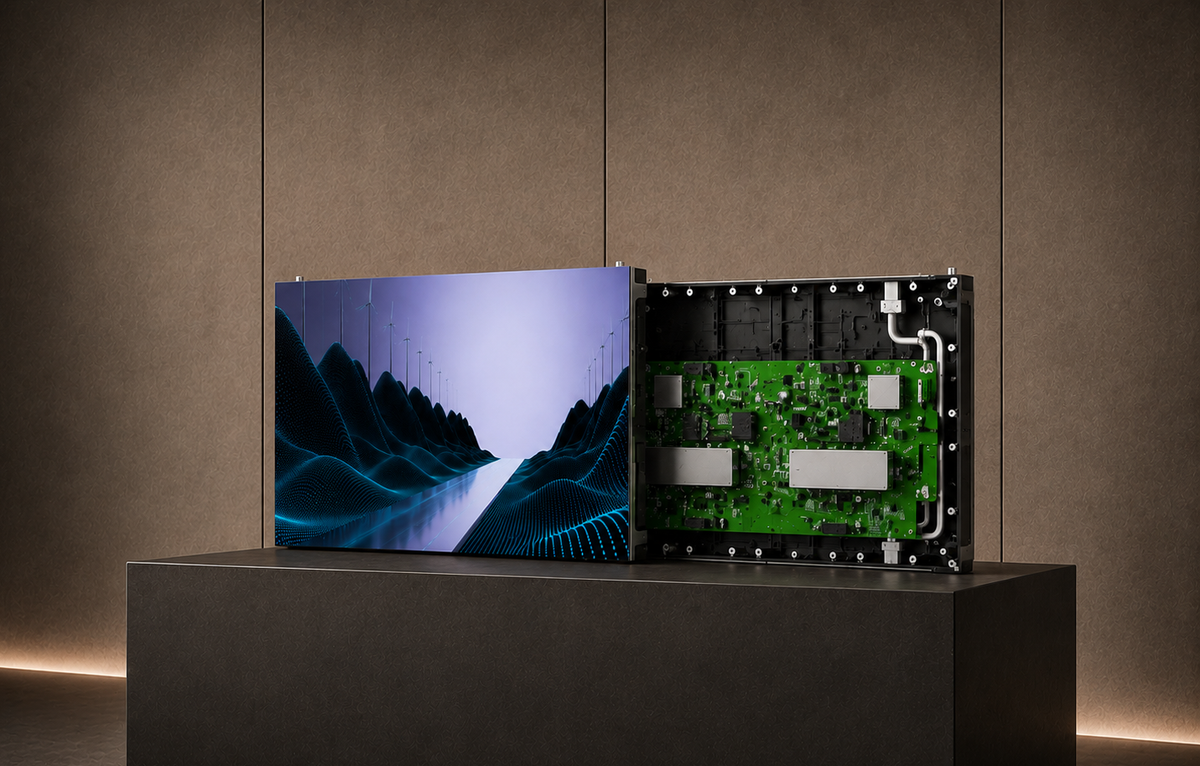

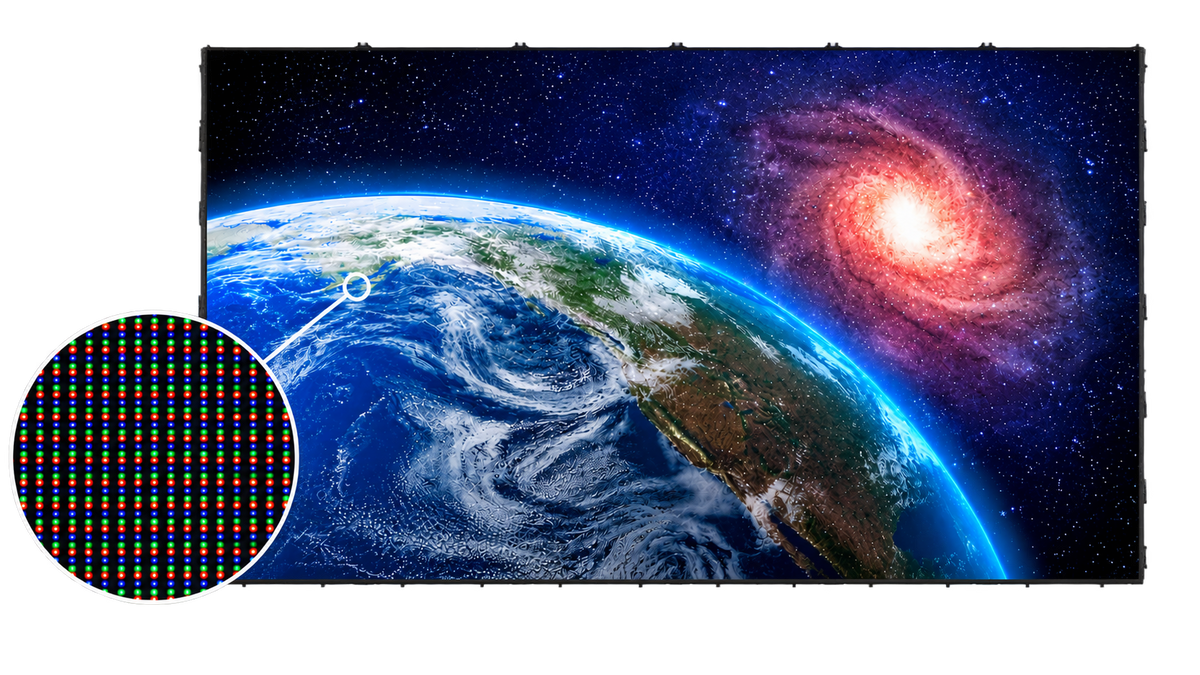

Sharper. Brighter. More immersive. With the revolutionary Chip-on-Board (CoB) packaging technology, each LED chip is directly mounted on the board and sealed with a protective resin, creating a seamless, high-density display that ensures long-lasting performance and visual brilliance.
AWALL's Flip-Chip CoB LED display technology brings tighter pixel spacing ranging from 1.25mm to 0.9mm, meaning more pixels can be packed into a smaller area and less noticeable pixelation even at close viewing distance. The result? A shaper, cleaner, more immersive viewing experience.
Safe for Long Viewing Sessions.
Blue light radiation, with wavelengths between 400-500 nanometers, is up to ten times more harmful to the eyes than ordinary light. AWALL mitigates this risk by targeting and reducing harmful blue light in the 4 15-455nm range right from the chip level.Certified by the internationally recognized TUV for safety, AWALL ensures reliable anti-blue light performance, protecting the eye health of conference attendees and command center staff who spend extended periods in front of the screen. This makes AWAL L the most capable product for a comfortable and safe viewing experience, especially during long sessions.
96.2 W/mK of high thermal conductivity
25% reduced temperature
Traditional LED displays generate significant heat creating discomfort for users seated close to the screen AWALL solves this with die-cast aluminum panels that have a high thermal conductivity coefficient of 96.2 W/mK, efficiently dissipating heat.The specially designed fin structure further enhances heat exchange with the surrounding environment, while the Common Cathode Energy-saving IC reduces screen surface temperature by 25% compared to standard LED screens. This innovative cooling solution ensures stable reliable operation and a comfortable viewing experience even for those in the front row, making close interaction with the screen more pleasant.
Sharper. Brighter. More immersive. With the revolutionary Chip-on-Board (CoB) packaging technology, each LED chip is directly mounted on the board and sealed with a protective resin, creating a seamless, high-density display that ensures long-lasting performance and visual brilliance.
AWALL's Flip-Chip CoB LED display technology brings tighter pixel spacing ranging from 1.25mm to 0.9mm, meaning more pixels can be packed into a smaller area and less noticeable pixelation even at close viewing distance. The result? A shaper, cleaner, more immersive viewing experience.
Safe for Long Viewing Sessions.
Blue light radiation, with wavelengths between 400-500 nanometers, is up to ten times more harmful to the eyes than ordinary light. AWALL mitigates this risk by targeting and reducing harmful blue light in the 4 15-455nm range right from the chip level.Certified by the internationally recognized TUV for safety, AWALL ensures reliable anti-blue light performance, protecting the eye health of conference attendees and command center staff who spend extended periods in front of the screen. This makes AWAL L the most capable product for a comfortable and safe viewing experience, especially during long sessions.
96.2 W/mK of high thermal conductivity
25% reduced temperature
Traditional LED displays generate significant heat creating discomfort for users seated close to the screen AWALL solves this with die-cast aluminum panels that have a high thermal conductivity coefficient of 96.2 W/mK, efficiently dissipating heat.The specially designed fin structure further enhances heat exchange with the surrounding environment, while the Common Cathode Energy-saving IC reduces screen surface temperature by 25% compared to standard LED screens. This innovative cooling solution ensures stable reliable operation and a comfortable viewing experience even for those in the front row, making close interaction with the screen more pleasant.
Specifications
75"
81"
108"
135"
162"
75"
21:9
81"
16:9
108"
16:9
135"
16:9
162"
16:9
70.99"x26.7"
70.87"x26.58"
70.99"x39.98"
70.87"x39.86"
94.72"x53.39"
94.49"x53.15"
118.35"x66.67"
118.11"x66.44"
141.97"x79.96"
141.73"x79.72"
3mm
48
3mm
72
3mm
128
3mm
200
3mm
200
1440x540, 1920x720
1.2mm, 0.9mm
1440x810, 1920x1080
1.2mm, 0.9mm
1920x1080, 2560x1440
1.2mm, 0.9mm
2400x1450, 3200x1800
1.2mm,0.9mm
3840x2160
1.2mm, 0.9mm
Native: 12,000:1
Dynamic: Infinite
HDR10
Native: 12,000:1
Dynamic: Infinite
HDR10
Native: 12,000:1
Dynamic: Infinite
HDR10
Native: 12,000:1
Dynamic: Infinite
HDR10
Native: 12,000:1
Dynamic: Infinite
HDR10
Flip-Chip Chip-on-Board
160/160 (HV)
13-14bit (Internal Processing: 19bit)
Flip-Chip Chip-on-Board
160/160 (HV)
13-14bit (Internal Processing: 19bit)
Flip-Chip Chip-on-Board
160/160 (HV)
13-14bit (Internal Processing: 19bit)
Flip-Chip Chip-on-Board
160/160 (HV)
13-14bit (Internal Processing: 19bit)
Flip-Chip Chip-on-Board
160/160 (HV)
13-14bit (Internal Processing: 19bit)
82lbs
125lbs
220lbs
341Ibs
500lbs
115/350W, 80/240W
475/1442 BTU, 330/990 BTU (Typ/Max)
160/520W, 120/360W
660/2145 BTU, 495/1485 BTU (Typ/Max)
210/630W, 290/930W
870/2,600 BTU, 966/2,890 BTU(Typ/Max)
440/1300W, 480/1450W
1,280/3,838 BTU, 1,423/4,265 BTU (Typical/Max)
640/1850W, 770/2000W
1,305/3,900 BTU, 1,449/4,335 BTU(Typical/Max)
1,200 nits/600 nits (Peak/Max);
≥97%
1,200 nits/600 nits (Peak/Max);
≥97%
1,200 nits/600 nits (Peak/Max);
≥97%
1,200 nits/600 nits (Peak/Max);
≥97%
1,200 nits/600 nits (Peak/Max);
≥97%
3,840Hz; 60Hz
3,840Hz; 60Hz
3,840Hz; 60Hz
3,840Hz; 60Hz
3,840Hz; 60Hz
Yes
Yes
Yes
Yes
Yes
Cxy≤±0.003
≥90%(BT.2020)
3,000-9,300K
Cxy≤±0.003
≥90%(BT.2020)
3,000-9,300K
Cxy≤±0.003
≥90%(BT.2020)
3,000-9,300K
Cxy≤±0.003
≥90%(BT.2020)
3,000-9,300K
Cxy≤±0.003
≥90%(BT.2020)
3,000-9,300K
ADC 12 Aluminum Alloy
Front Installation
ADC 12 Aluminum Alloy
Front Installation
ADC 12 Aluminum Alloy
Front Installation
ADC 12 Aluminum Alloy
Front Installation
ADC 12 Alumnium Alloy
Front Installation
IP65/IP30
(Front/Rear)
IP65/IP30
(Front/Rear)
IP65/IP30
(Front/Rear)
IP65/IP30
(Front/Rear)
IP65/IP30
(Front/Rear)
100,000H
100,000H
100,000H
100,000H
100,000H
-20˚C~50˚C
10%RH~95%RH
-20˚C~50˚C
10%RH~95%RH
-20˚C~50˚C
10%RH~95%RH
-20˚C~50˚C
10%RH~95%RH
-20˚C~50˚C
10%RH~95%RH
10%RH~80%RH
10%RH~80%RH
10%RH~80%RH
10%RH~80%RH
10%RH~80%RH
Built-In
Windows,macOS,
iOS,Android
Built-In
Windows,macOS,
iOS,Android
Built-In
Windows,macOS,
iOS,Android
Built-In
Windows,macOS,
iOS,Android
Built-In
Windows,macOS,
iOS,Android
CE/CB/ETL/FCC;
2 Years(Standard)
CE/CB/ETL/FCC;
2 Years(Standard)
CE/CB/ETL/FCC;
2 Years(Standard)
CE/CB/ETL/FCC;
2 Years(Standard)
CE/CB/ETL/FCC;
2 Years(Standard)
FAQ
If you have any additional questions, please let us know!
Why 4K doesn't matter for MicroLEDs
With Micro LED technology, 4K resolution is not as crucial as it might be with traditional LED or OLED displays for several reasons:
1 Pixel Density: Micro LED displays have incredibly small, individually addressable LEDs, which allow for extremely high pixel densities. This means that even at larger screen sizes, the image can remain sharp and detailed without needing to rely on 4K resolution. The technology inherently supports high levels of clarity, which can make the difference between a 4K and non-4K display less noticeable, especially in larger screens.
2 Scalability: Micro LED technology is modular, meaning it can be scaled up without losing image quality. The system can be composed of smaller panels that are individually calibrated and can create high-resolution images without the need for a fixed 4K matrix across the entire display.
3 Superior Brightness and Contrast: Micro LED displays offer excellent brightness and contrast ratios because each pixel is self-emissive (like OLED), which gives them better overall image quality. The clarity and depth of the image often make the resolution difference less significant.
4 Viewing Distance: At typical viewing distances, the pixel density of Micro LED displays can be high enough that 4K resolution becomes less noticeable, especially on larger screens where the pixel density still remains sufficient for sharp detail.
5 High Dynamic Range (HDR) and Color Accuracy: Micro LED technology can excel in color accuracy and HDR performance, which can contribute more to the perceived image quality than resolution alone. As a result, a display with excellent HDR and color performance can look just as good as, if not better than, a traditional 4K display.
In summary, while 4K can still be beneficial, Micro LED's inherent strengths, such as high pixel density, brightness, and contrast, make it less reliant on resolution to deliver superior image quality.
Is 1200 Nits Bright Enough?
For a microLED display in a home environment, the appropriate brightness is typically between 300 and 700 nits. This range provides a good balance between image clarity and comfort, ensuring the display is bright enough for most rooms without being overpowering.
- 300-500 nits: Ideal for dim to moderately lit rooms. This range works well for most home environments and provides comfortable viewing without straining your eyes.
- 500-700 nits: Suitable for brighter rooms or if you want extra visibility, especially during daylight hours with ambient light.
For HDR (High Dynamic Range) content, microLED displays can go much higher—up to 1000 nits or more—to enhance contrast and color vibrancy. However, these higher brightness levels are usually most noticeable in rooms with controlled lighting.Would you be watching movies, gaming, or just general use in your home environment? That can influence the ideal brightness level too!
60 Hz Refresh Rate
A 60 Hz refresh rate is generally fine for most everyday uses on a microLED display, such as watching movies, TV shows, or general browsing. For those types of activities, the smoothness provided by 60 Hz is usually sufficient and won't cause any noticeable issues.
