Installation
All the information and materials you need to complete your AWALL installation.
Preparation Guide
Preparation is required to ensure your AWALL MicroLED is installed seamlessly and that the wall can properly support the weight of the display. We recommend following all requirements outlined in the preparation guide.

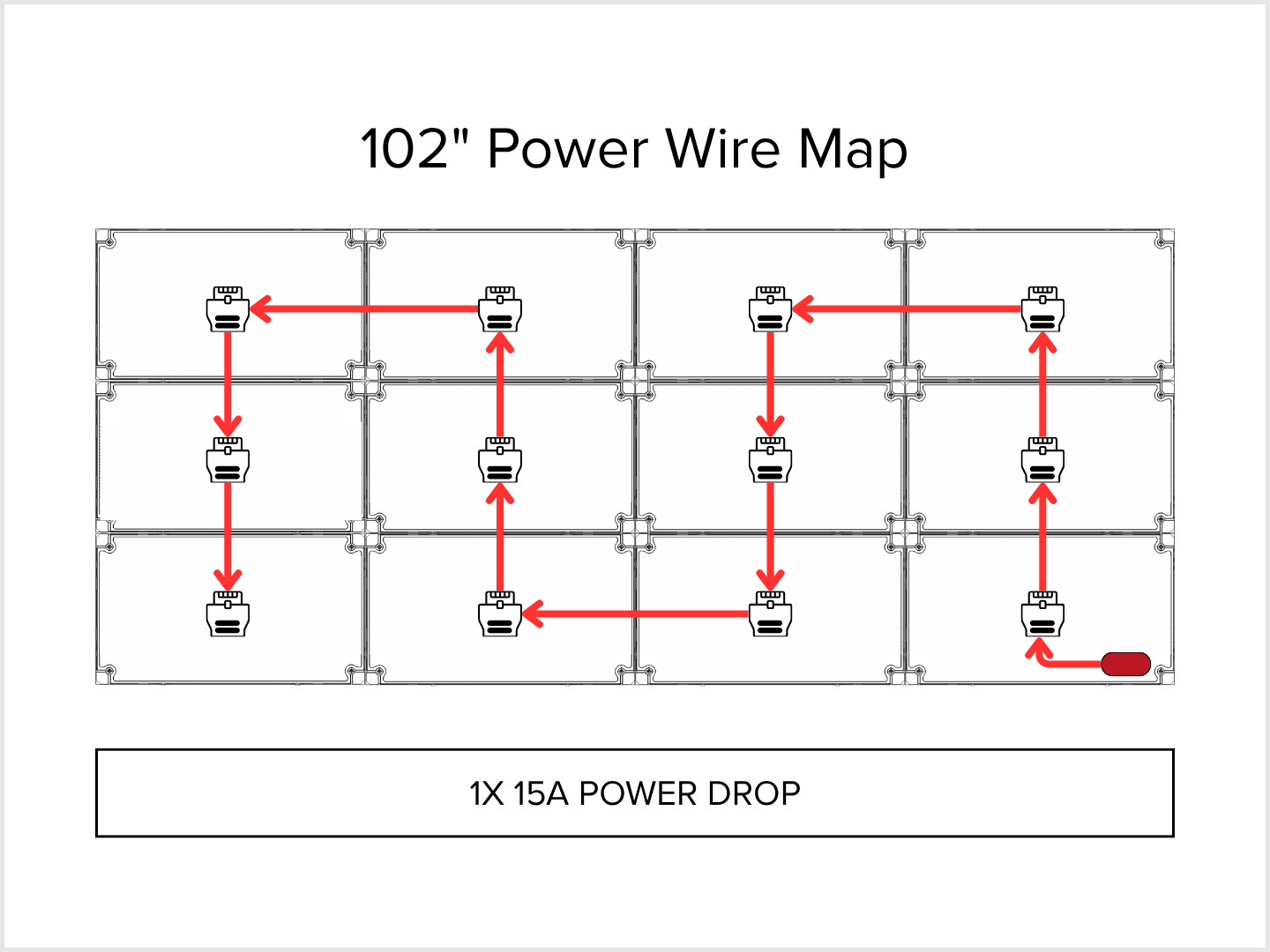

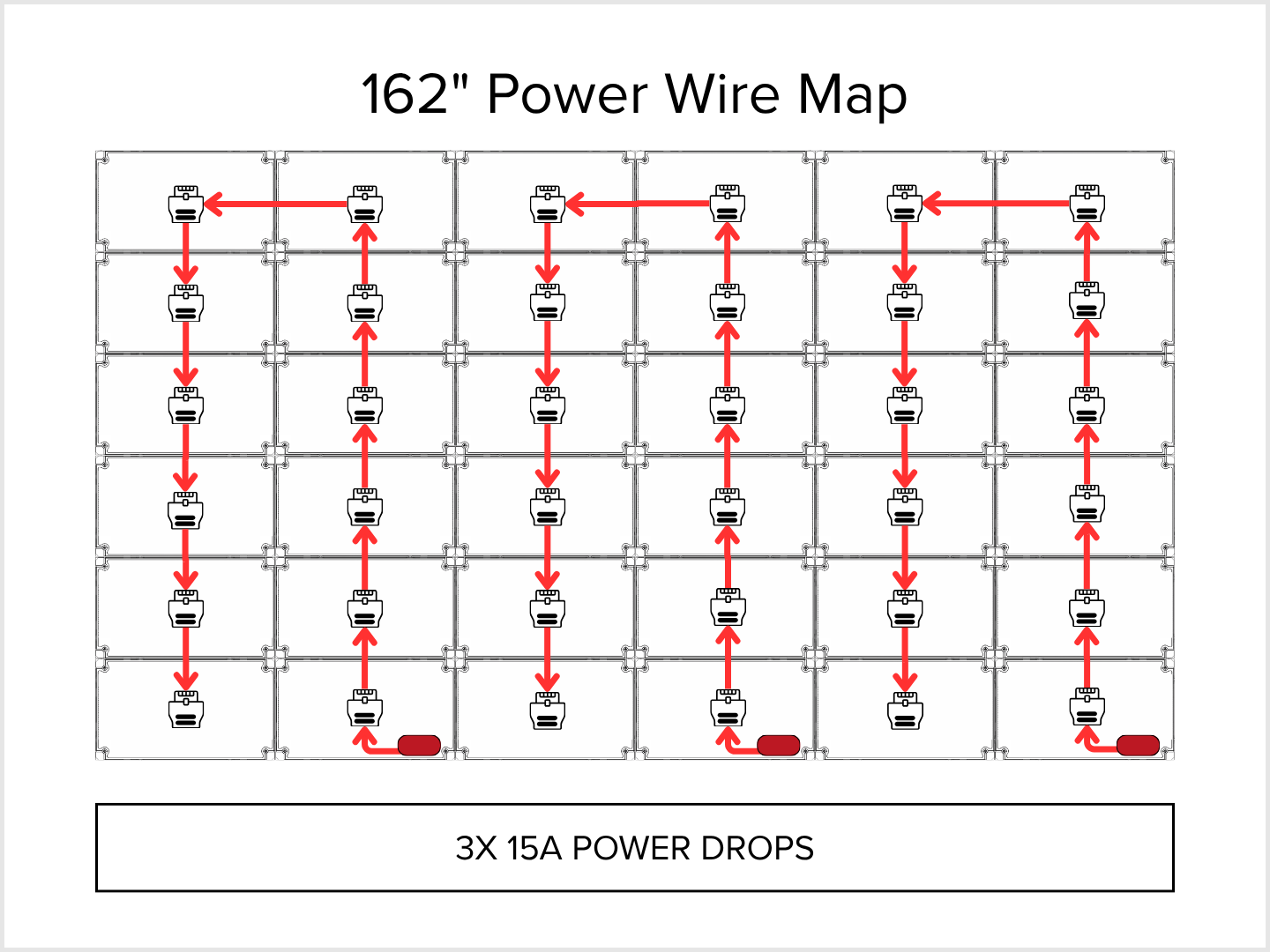

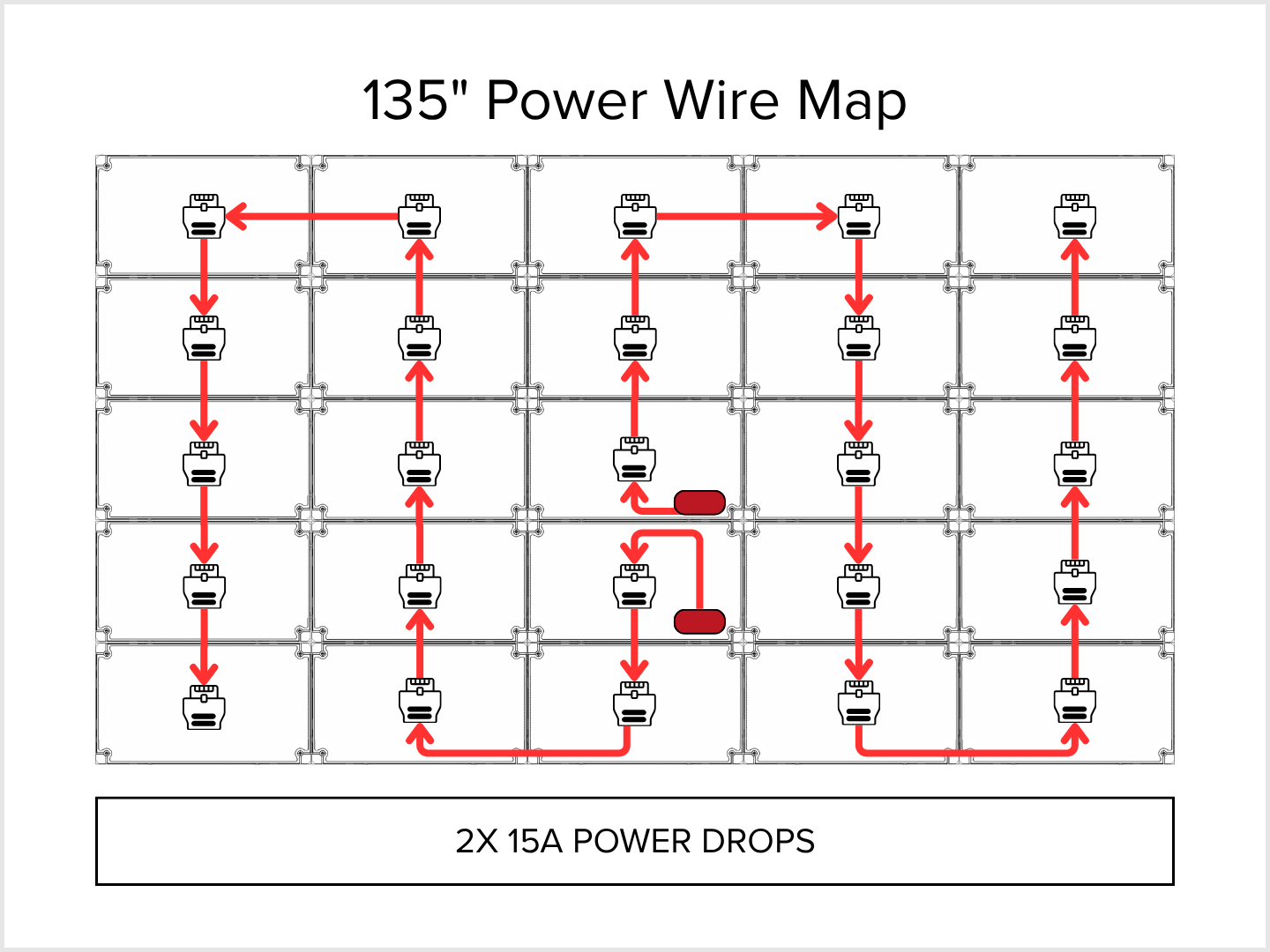

Download PDFPower Wire Maps
Users must drill holes for power drops. Wiring requirements vary by screen size—please select your configuration to view the appropriate power specifications.
•••
Select Your Screen Size

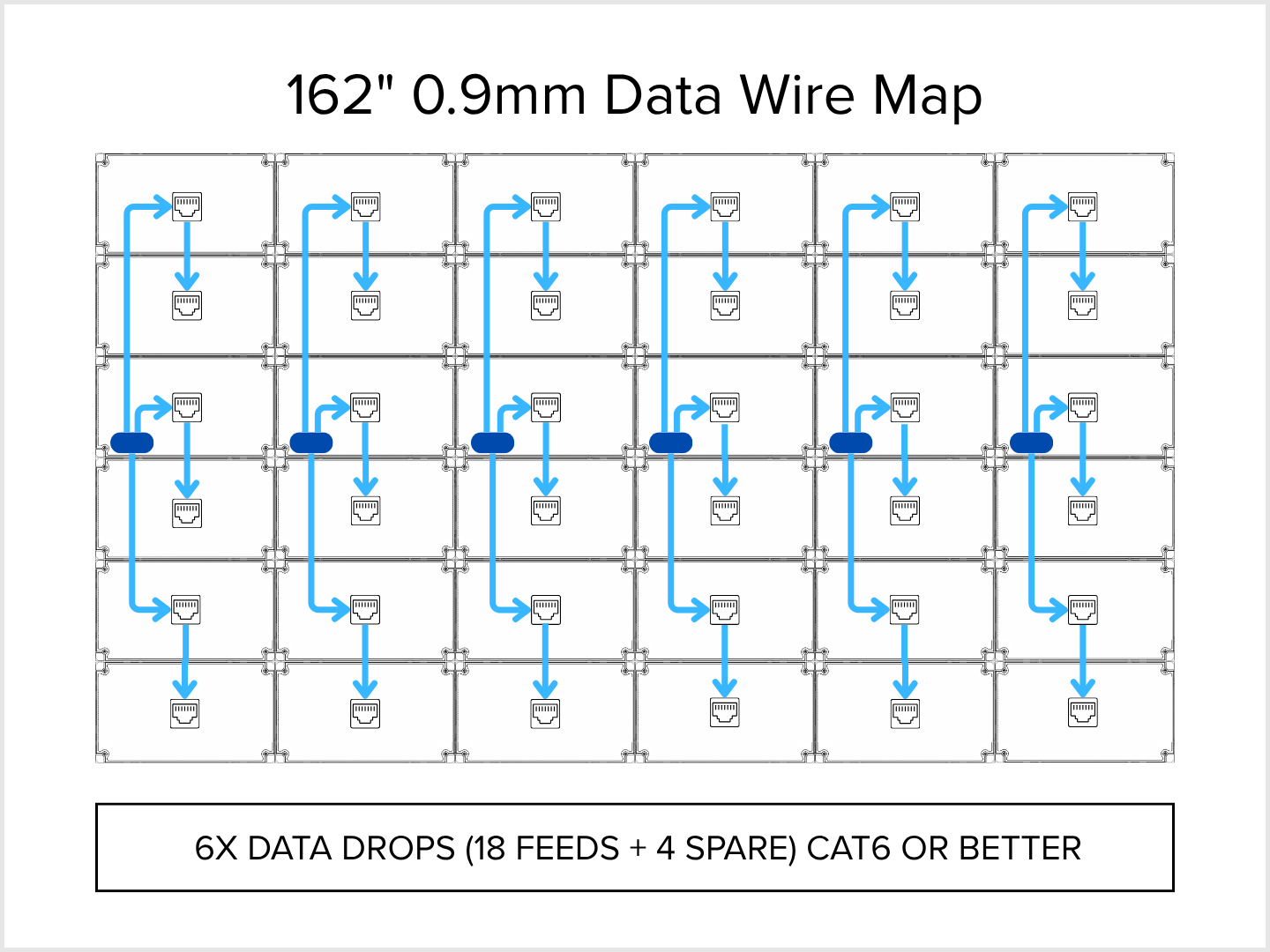

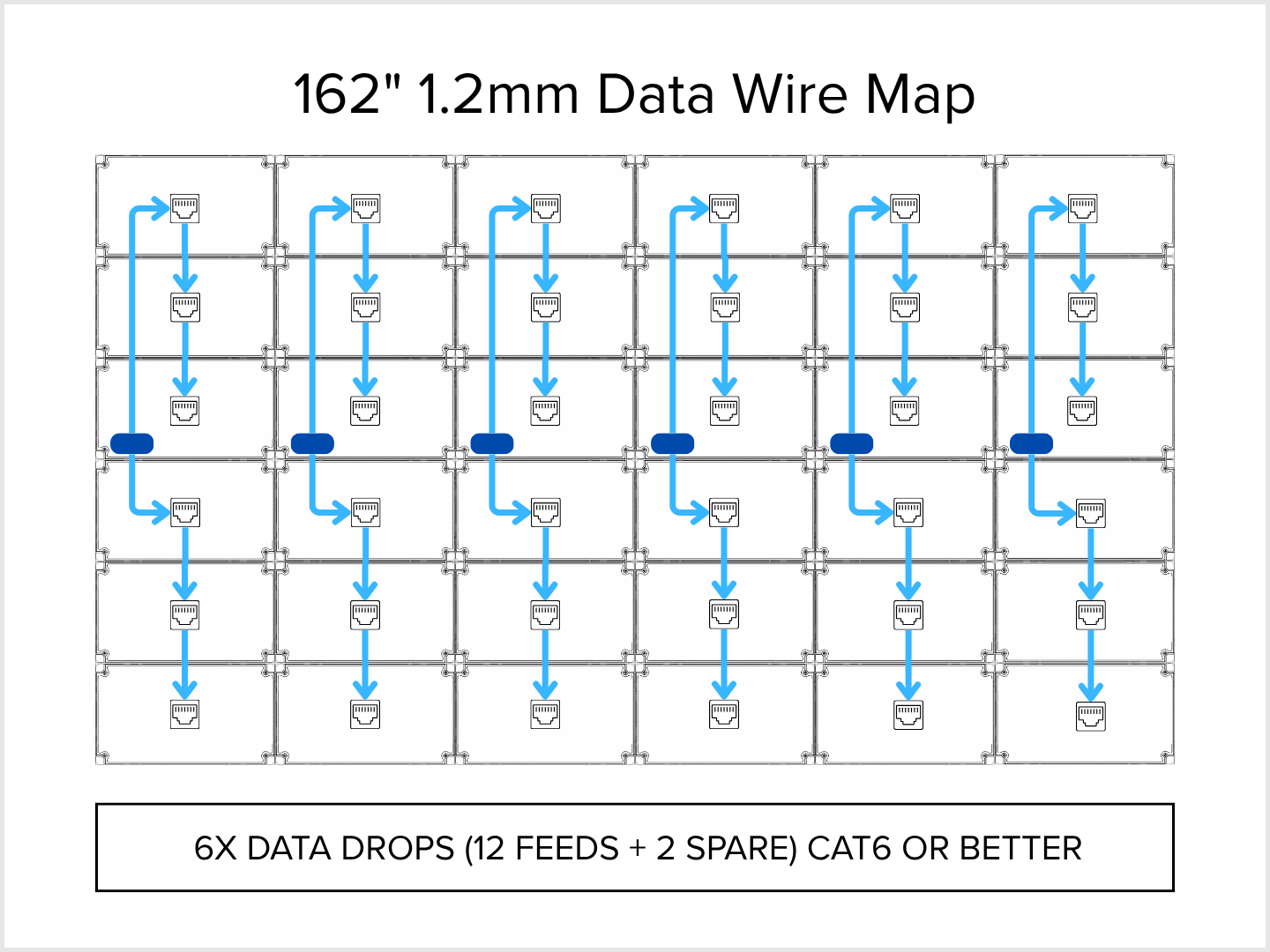

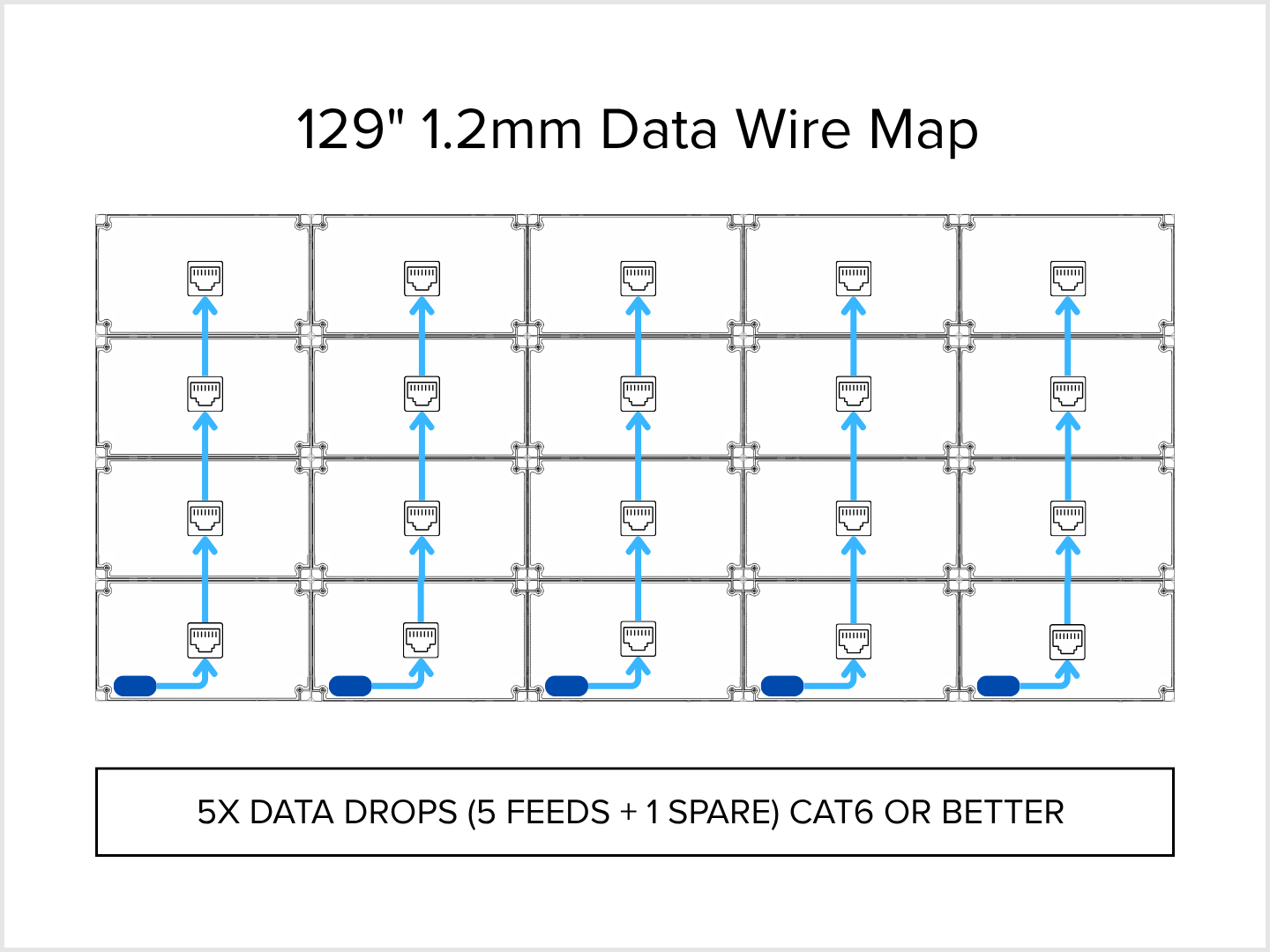

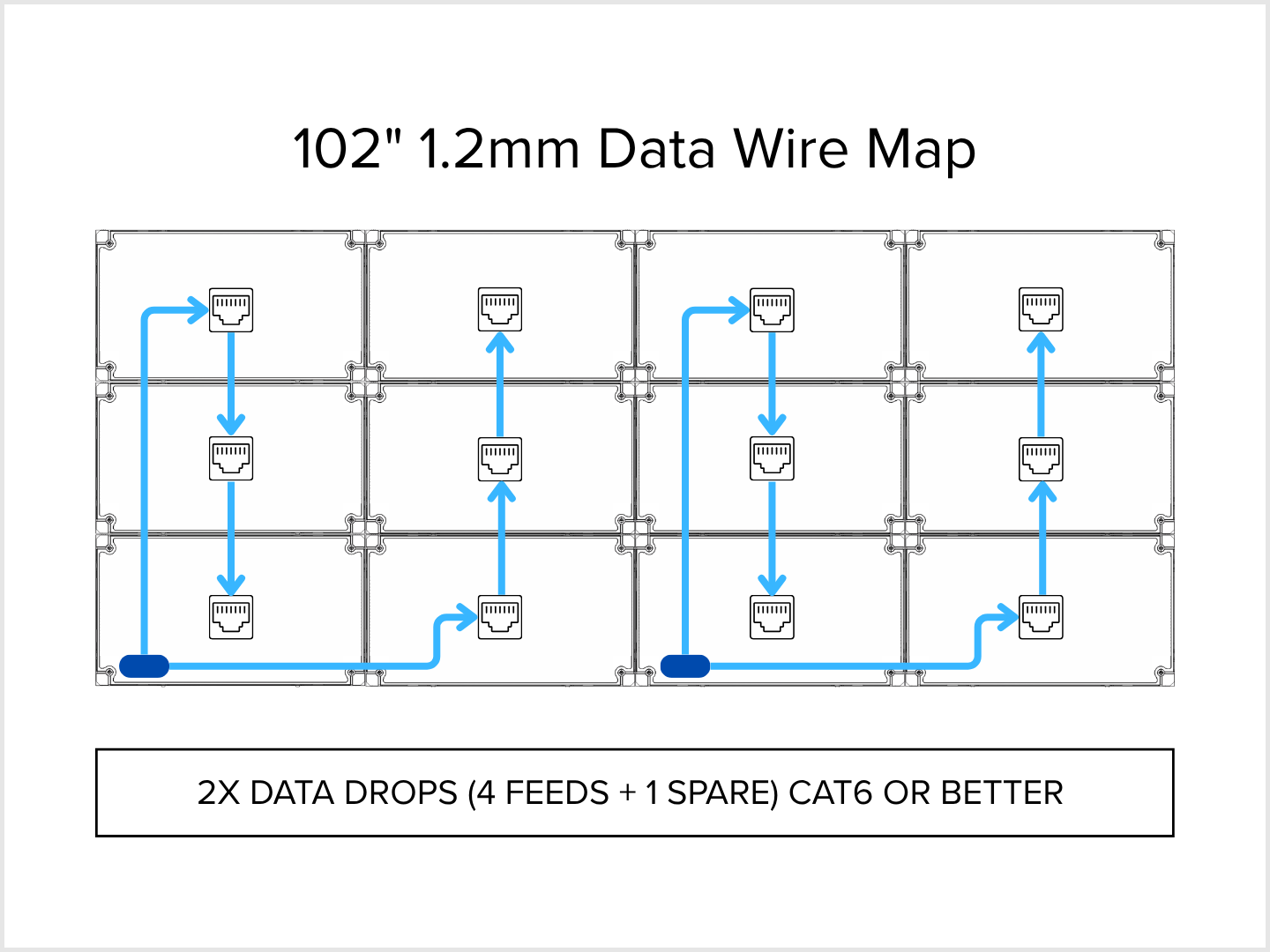

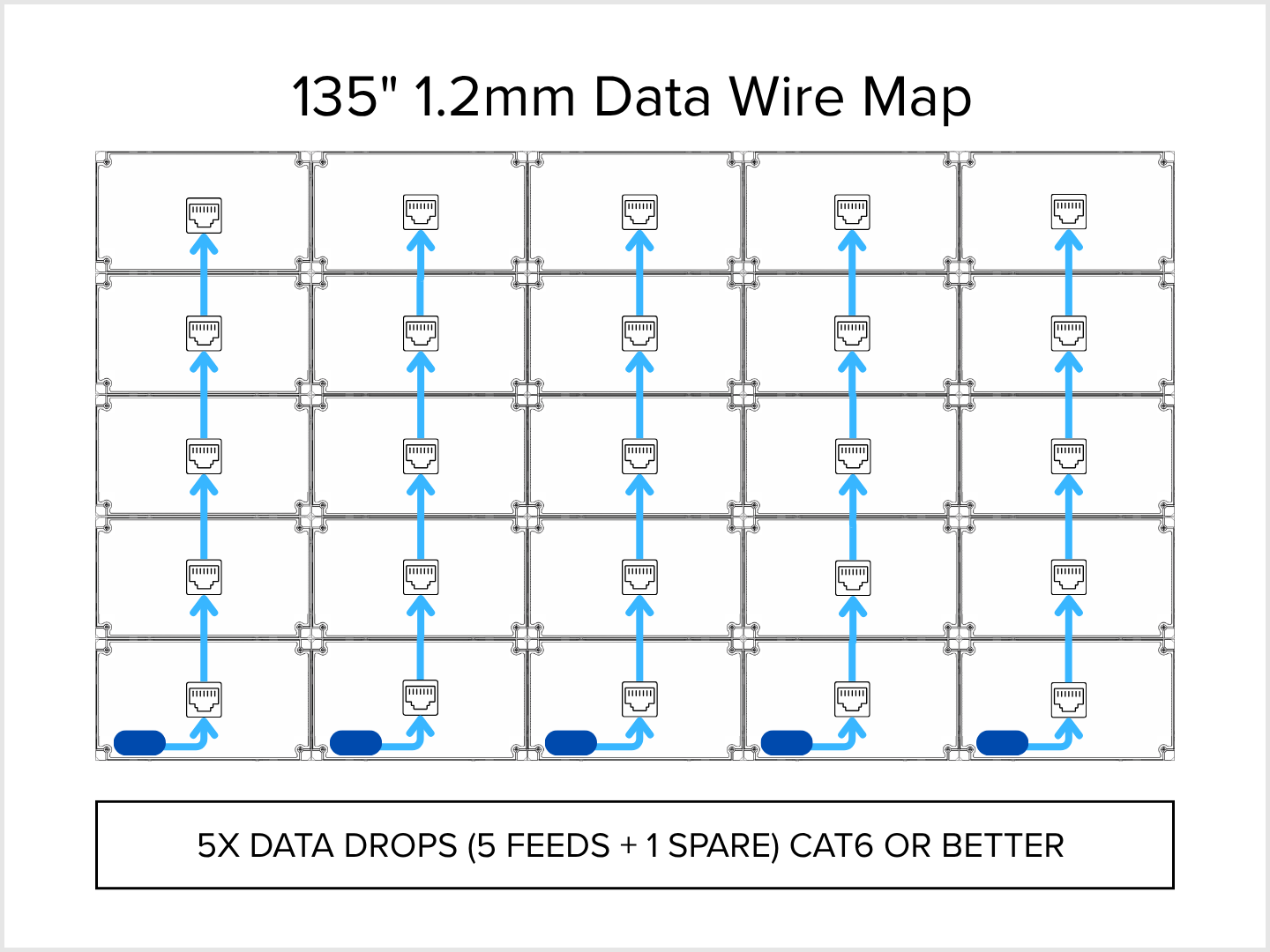

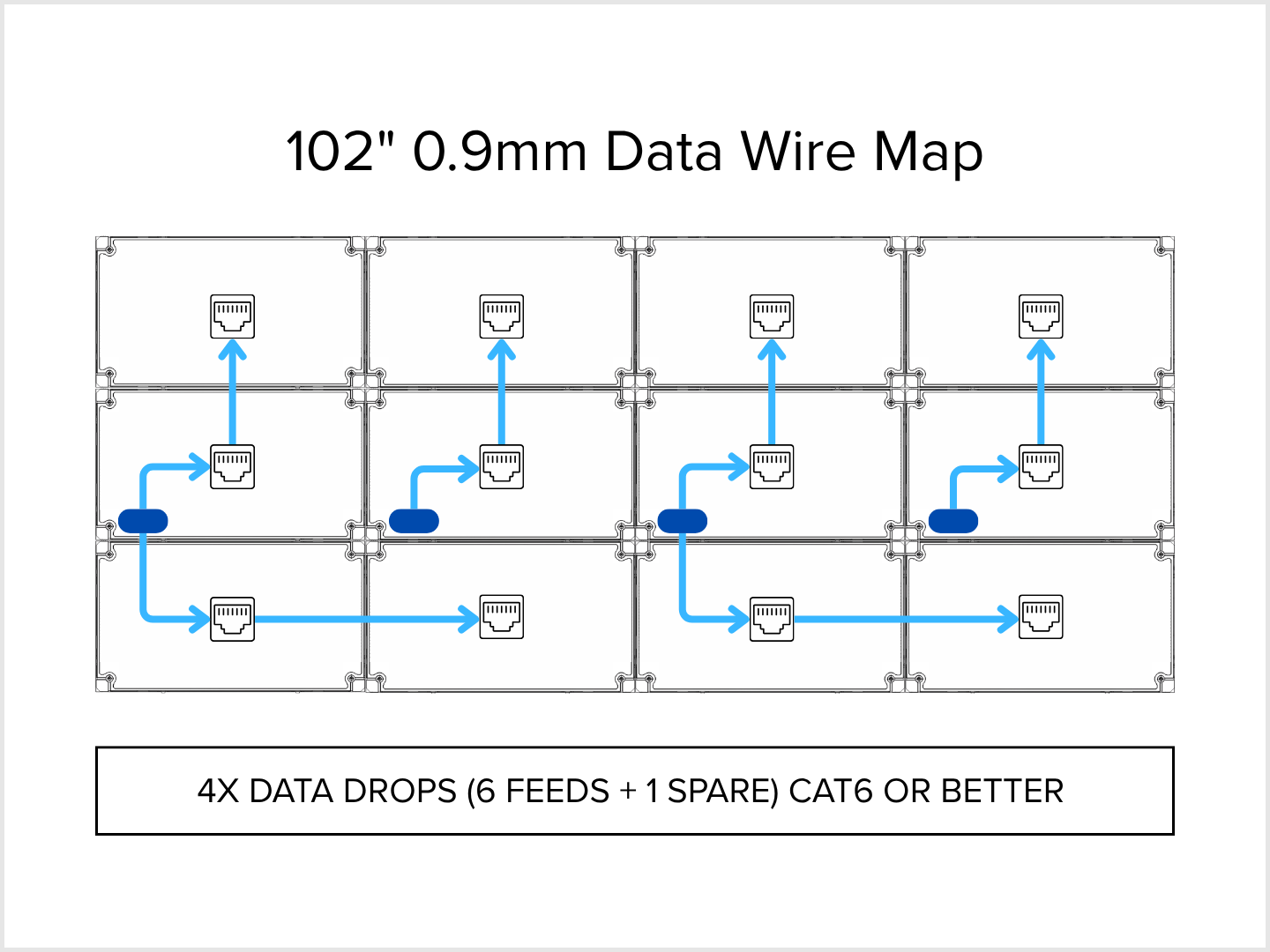

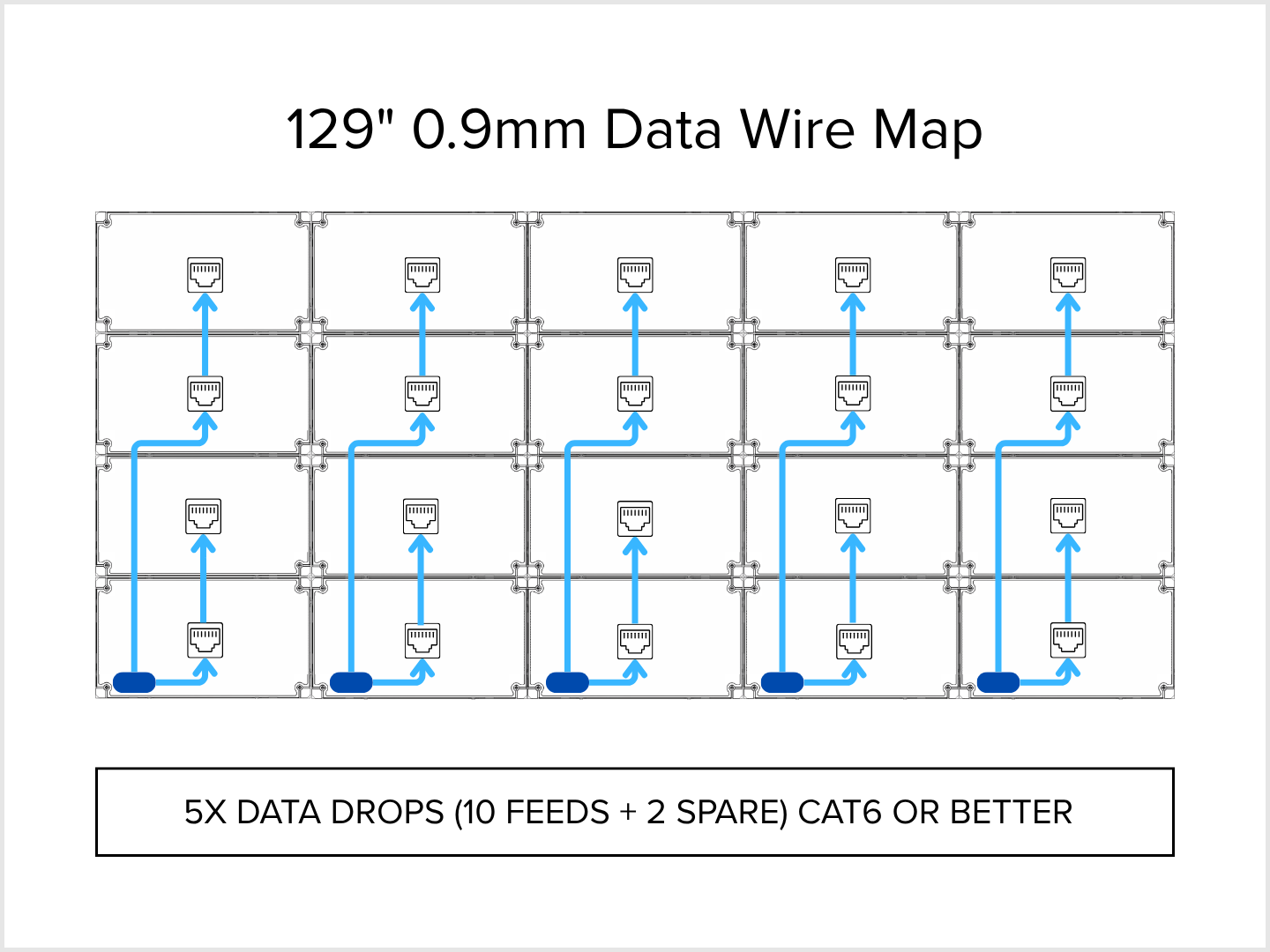

Data Wire Maps
Users must drill holes for data drops. Wiring requirements vary by screen size and pixel pitch—please select your configuration to view the appropriate data cable specifications.
•••
Custom Sizes
If you purchased a custom-sized screen or cannot locate your configuration, please contact support@awall.com for assistance.
