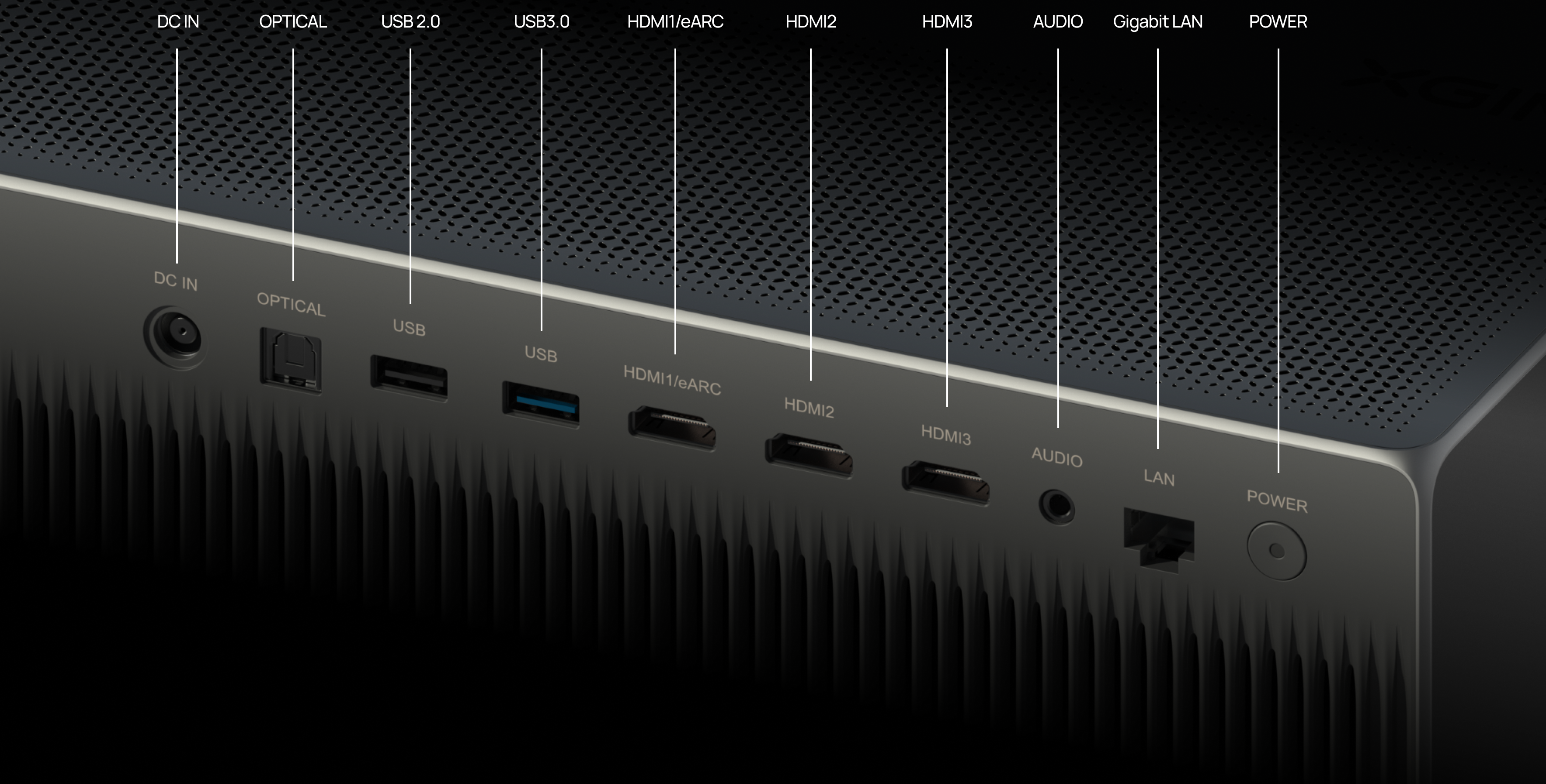

Close-up of the rear port area of a GIMI smart projector, showing labeled connectors including DC IN, OPTICAL, USB 2.0, USB 3.

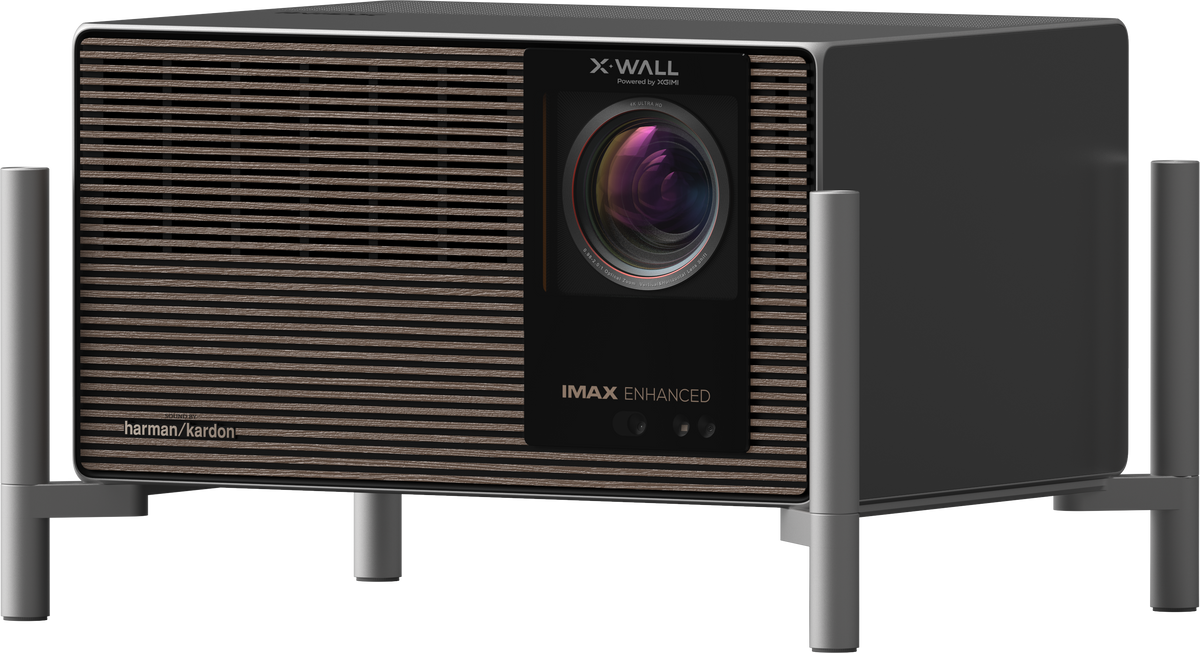

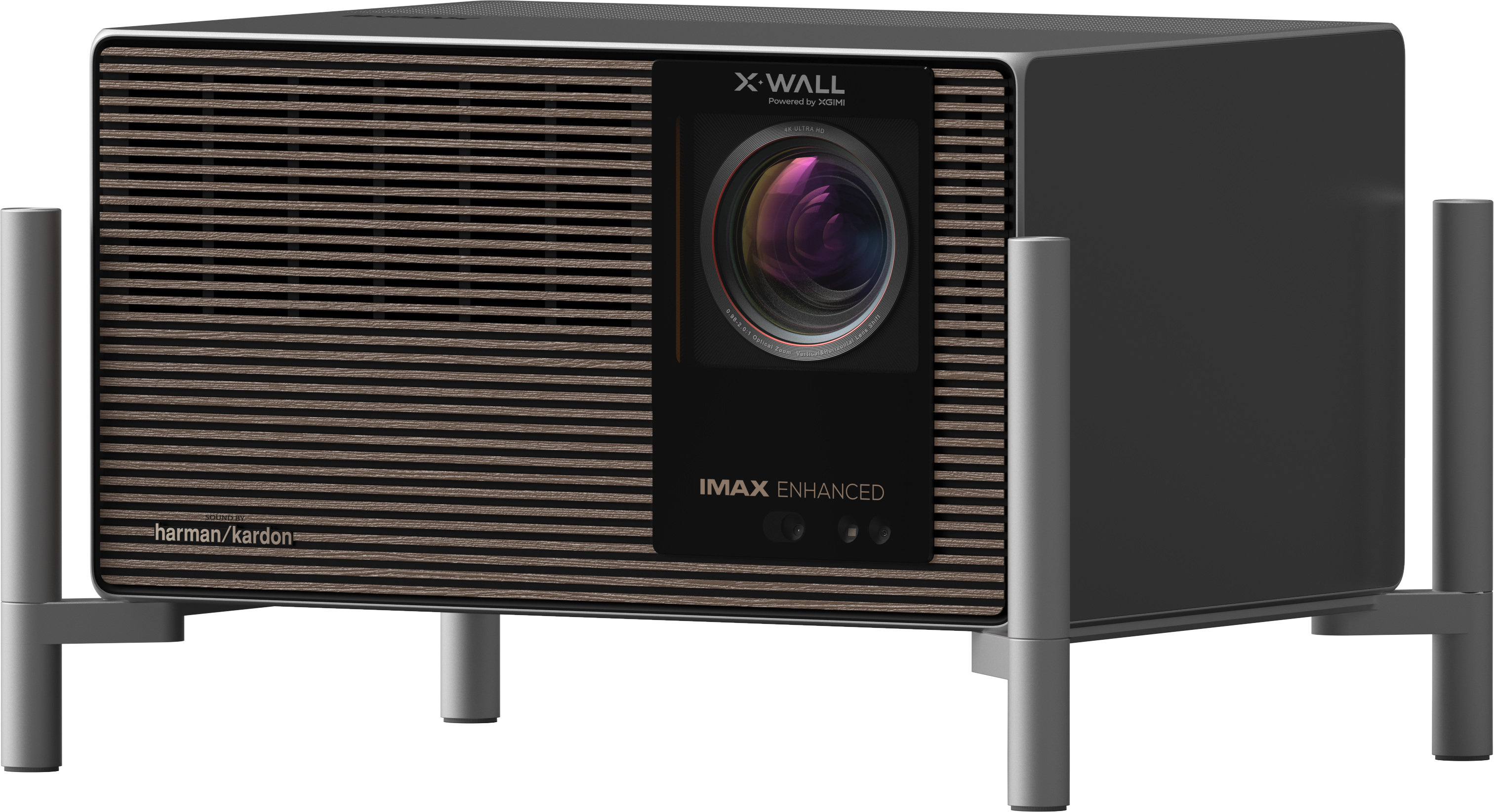

XWALL TITAN Noir Ultra

4K RGB triple-laser projection with 8,000 ISO lumens and advanced Dual Iris contrast.

8,000 ISO Lumens
12,000:1 Native Contrast
RGB Triple-Laser
Dual Intelligent Iris

Product Overview

XWALL TITAN Noir Ultra delivers premium cinema performance for premium home theaters and entertainment spaces. The RGB triple-laser light source commands exceptional brightness, while Dual Intelligent Iris engineering produces deeper blacks, refined shadow detail, and striking image depth. Precision optics and flexible installation controls ensure sharp, accurate positioning across diverse room configurations.

Key Features

8,000 ISO lumens
4K UHD resolution
RGB triple-laser light source
12,000:1 native contrast
Up to 100,000:1 dynamic contrast
Dual Intelligent Iris System

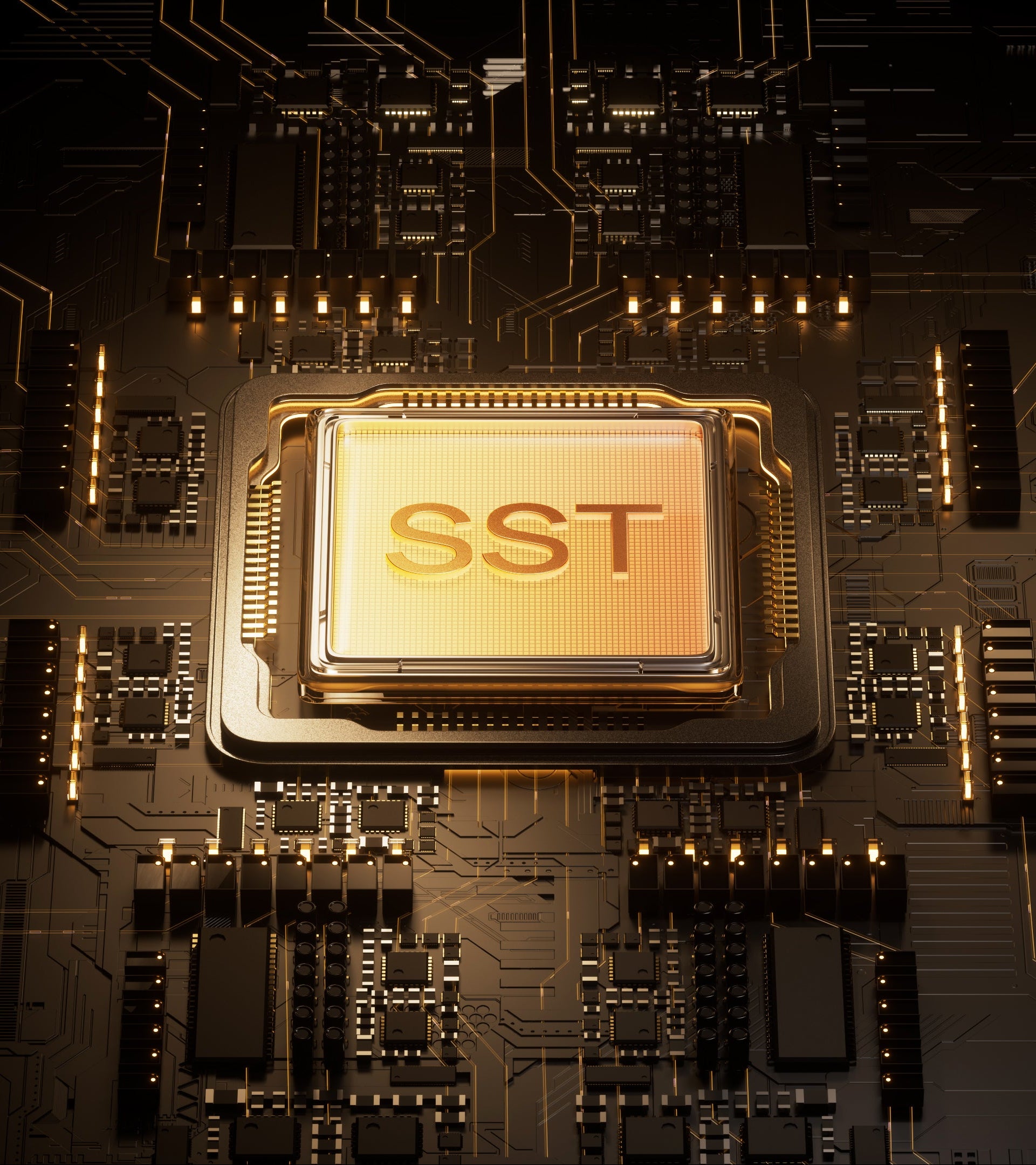

Next-generation SST DMD technology
110% BT.2020 color-gamut coverage
Dolby Vision, IMAX Enhanced and HDR10+
Active-shutter 3D support
Gaming response as low as 1 ms at 1080p/240Hz products.
Harman Kardon Speakers

Technical Specifications

Resolution: 3840 × 2160

Brightness: 8,000 ISO lumens

Light Source: RGB triple laser

Display Technology: DLP with 0.47-inch SST DMD

Native Contrast: Up to 12,000:1

Dynamic Contrast: Up to 100,000:1

Color Gamut: 110% BT.2020

Throw Ratio: 0.98–2.0:1

Image Size: 40–300 inches

Lens Shift: Vertical ±130% / Horizontal ±50%

Lens Control: Motorized zoom, focus and lens shift

Lens Memory: Up to five saved positions

3D: Active-shutter 3D

Light-Source Life: Up to 20,000 hours

Extraordinary Performance at Every Level.

8,000

ISO Lumens

Commanding brightness for brilliant large-format images.

12,000:1

Native Contrast

Deep blacks and detailed shadows without relying solely on digital enhancement.

110%

BT.2020 Color

Expansive color coverage powered by RGB triple-laser technology.

4K UHD

Resolution

Exceptional clarity at 3840 × 2160 resolution.

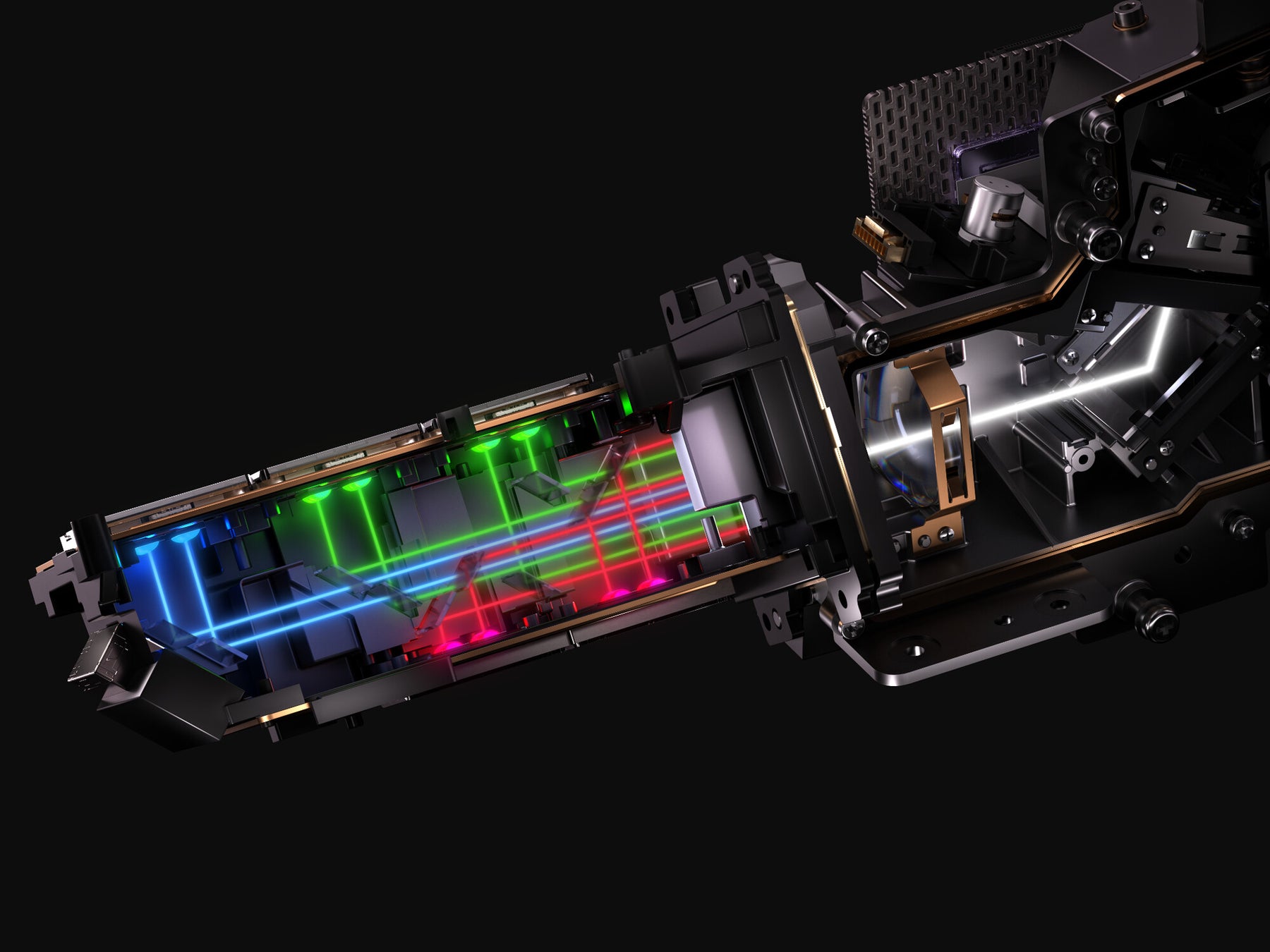

RGB TRIPLE-LASER TECHNOLOGY

Color Without Compromise.

Dedicated red, green and blue laser light sources produce an exceptionally wide color range with brilliant brightness, lifelike accuracy and extraordinary depth.

110% BT.2020 Color

ΔE Below 0.8

Low Speckle and Color Fringing

DUAL INTELLIGENT IRIS

Deeper, Cleaner Blacks.

Two independently controlled irises precisely regulate light throughout the optical path, producing deeper blacks, detailed shadows and exceptional image depth.

12,000:1 Native Contrast

Up to 100,000:1 Dynamic Contrast

Five Manual Iris Levels plus Dynamic Mode

UNMATCHED CINEMA QUALITY

Every Film. Exactly As It Should Be.

XWALL TITAN Noir Ultra combines brilliant RGB triple-laser color, deep-black performance and precision processing to deliver an immersive, theater-scale image with extraordinary clarity and depth.

DOLBY VISION

Experience optimized brightness, contrast and color with compatible Dolby Vision content.

IMAX ENHANCED

Enjoy compatible films with expanded presentation and immersive cinematic detail.

HDR10+

Dynamic metadata helps optimize contrast and brightness from scene to scene.

4K UHD CLARITY

Display movies, sports and entertainment with detailed 3840 × 2160 resolution.

BUILT FOR EVERY EXPERIENCE

Cinematic for Movies. Responsive for Gaming.

PREMIUM HOME CINEMA

Step Inside the Story.

Experience theater-scale 4K entertainment with vivid RGB laser color, deep blacks and support for Dolby Vision, HDR10+ and IMAX Enhanced.

Dolby Vision · HDR10+ · IMAX Enhanced · Active 3D

ULTRA-RESPONSIVE GAMING

Big-Screen Gaming Without the Wait.

Game Mode delivers responsive large-format play with latency as low as 1 ms at 1080p/240Hz.

1 ms at 1080p/240Hz · 2.2 ms at 1080p/120Hz · 3 ms at 4K/60Hz

TECHNICAL DETAILS

XWALL TITAN Noir Ultra Specifications


Resolution4K UHD, 3840 × 2160

Display TechnologyDLP with next-generation SST DMD

Light SourceRGB triple laser

Brightness8,000 ISO lumens

Native ContrastUp to 12,000:1

Dynamic ContrastUp to 100,000:1

Color Gamut110% BT.2020

HDRDolby Vision, HDR10+ and IMAX Enhanced

3DActive-shutter 3D support

OPTICS AND PLACEMENT

Throw Ratio0.98–2.0:1

Image SizeApproximately 40–300 inches

Lens ControlMotorized zoom, focus and lens shift

Vertical Lens Shift±130%

Horizontal Lens Shift±50%

Lens MemoryUp to five saved positions

Supported Formats16:9 and 2.35:1 CinemaScope

GAMING

1080p at 240HzAs low as 1 ms

1080p at 120HzAs low as 2.2 ms

4K at 60HzAs low as 3 ms

CONNECTIVITY

HDMIThree ports with eARC support

USBUSB 3.0 and USB 2.0

NetworkGigabit Ethernet

AudioOptical and analog audio outputs
